Using SST (104 Pin Breakout Box)
- Disconnect the negative battery cable. See BATTERY DISCONNECT .
- Disconnect the PCM connector.

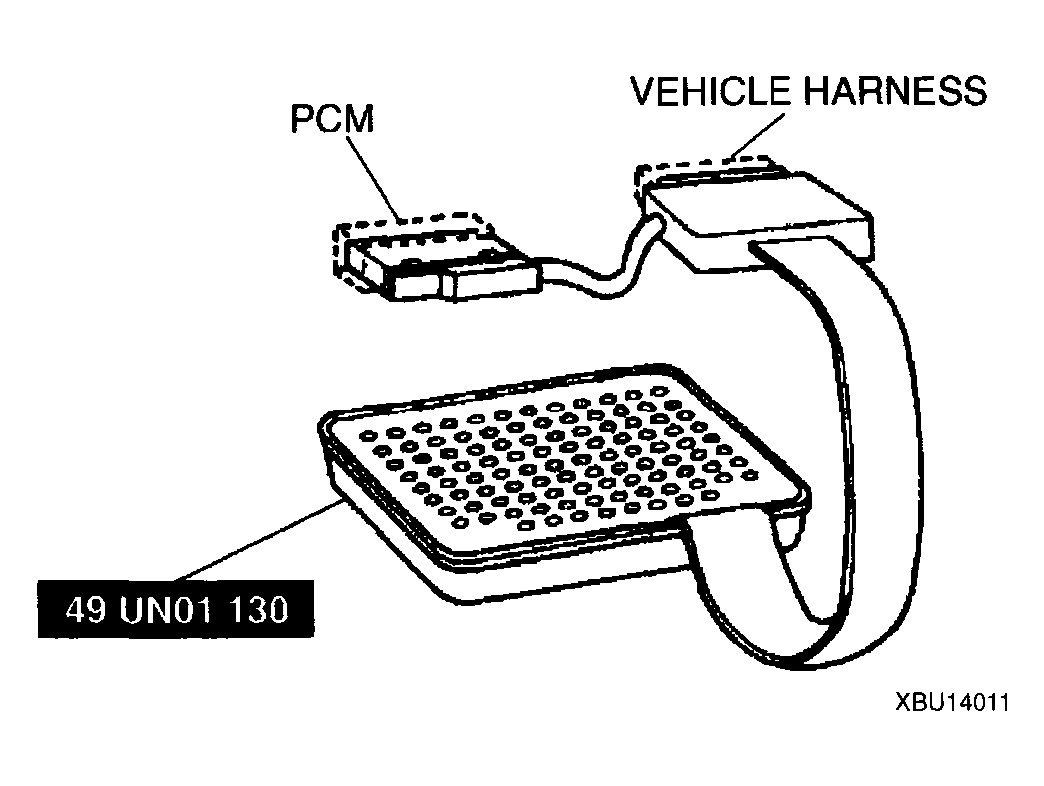

- Connect the 104 Pin Breakout Box SST to the PCM.
- Tighten the connector bolt.
Tightening torque
7.9-10.7 N.m {80-110 kgf.m, 69.5-95.4 in.lbf}
- Connect the negative battery cable.
- Measure the voltage at each terminal.
- If any incorrect voltage is detected, check related systems, wiring harnesses and connectors referring to the possible malfunction in the terminal voltage list.
