2006 Mazda 6 i, 4D Sedan, AutomaticFACTORY OEM SERVICE PROCEDURE

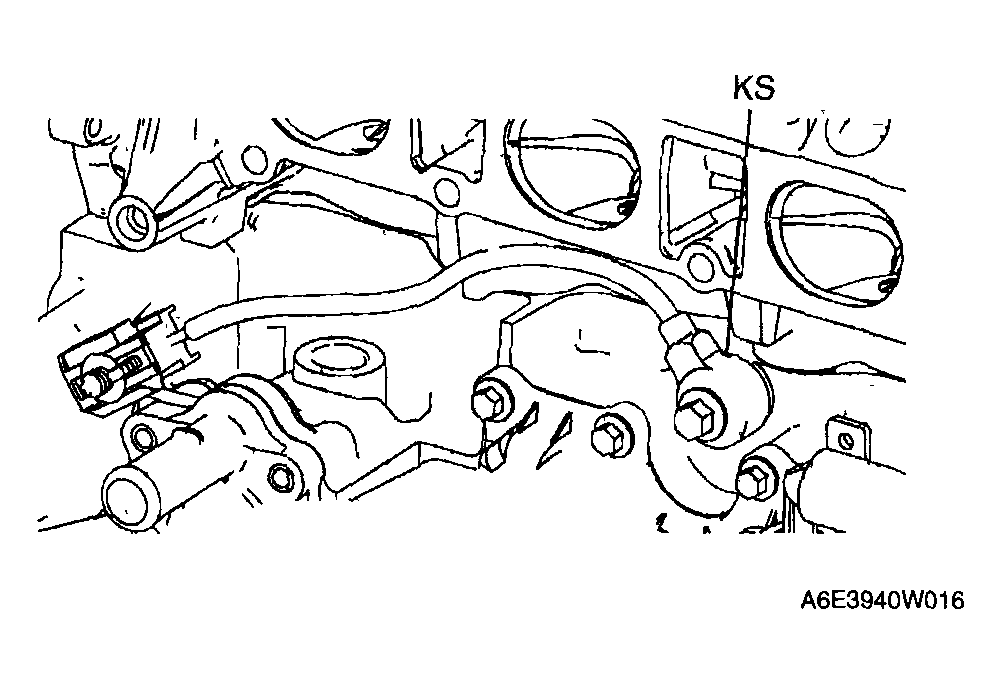

Knock Sensor (KS) Removal/Installation
- Remove the intake manifold. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
- Remove the KS attachment bolt to remove the KS.
- Install in the reverse order of removal.
Tightening torque
16.2-23.8 N.m
{1.66-2.42 kgf.m, 12.0-17.5 ft.lbf}
