2006 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE

DTC P2502: Notes

DTC P2502 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P2502

Charging system voltage problem

DETECTION CONDITION

PCM determines that the generator output voltage is above 17 V or the battery voltage is below 11 V while the engine is running.

Diagnostic support note

This is a continuous monitor (Other).
The MIL does not illuminate.
FREEZE FRAME DATA is not available.
DTCs are stored in the PCM memory.

POSSIBLE CAUSE

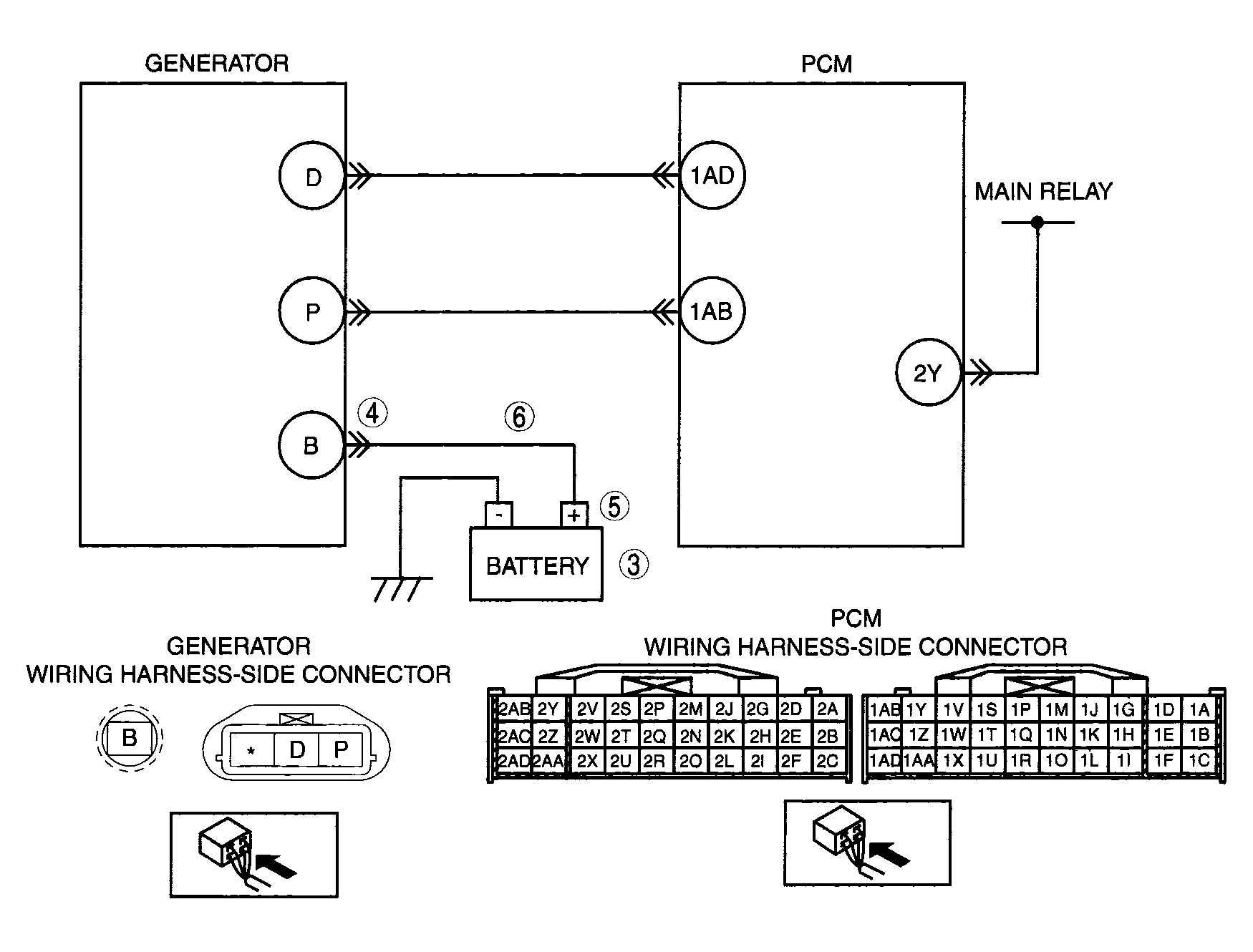

Open circuit between generator terminal B and battery positive terminal
Battery malfunction
Generator malfunction
PCM is poorly connected
PCM, generator and/or battery are poorly connected

Courtesy of MAZDA MOTORS CORP.
