2006 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE

DTC P2123: Notes

DTC P2123 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P2123

Accelerator pedal position (APP) sensor No. circuit high input

DETECTION CONDITION

The PCM monitors the APP sensor No. signal. If the PCM detects that the APP sensor No. voltage is above 4.5 V , the PCM determines that the APP sensor No. circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (CCM).
MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
FREEZE FRAME DATA is available.
DTCs are stored in the PCM memory.

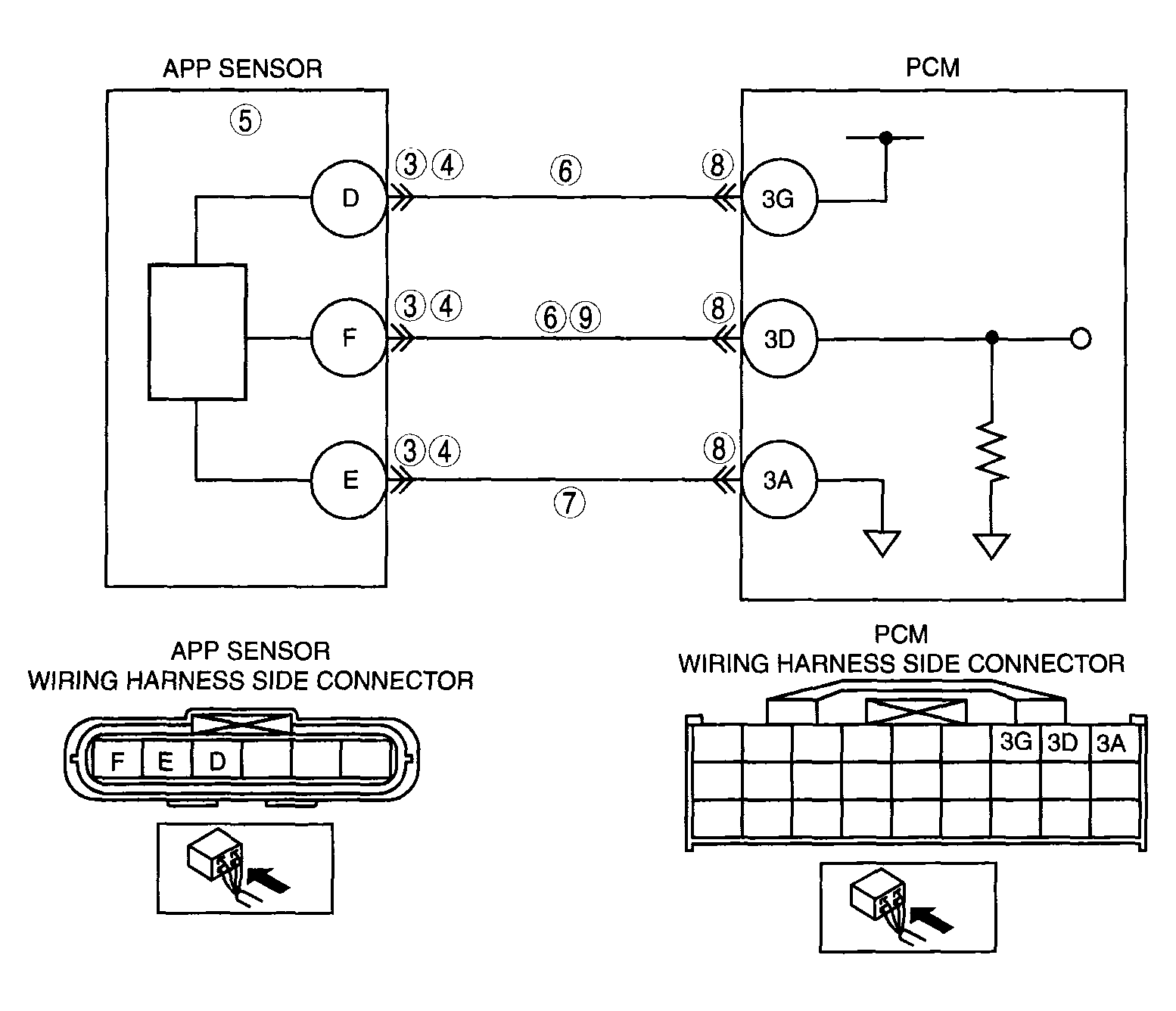

POSSIBLE CAUSE

APP sensor malfunction
Connector or terminal malfunction
Open circuit between APP sensor terminal E and PCM terminal 3A
Open circuit between APP sensor terminal F and PCM terminal 3D
Short to constant voltage in the supply circuit between APP sensor terminal F and PCM terminal 3D

Courtesy of MAZDA MOTORS CORP.
