2006 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE

DTC P2122: Notes

DTC P2122 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P2122

Accelerator pedal position (APP) sensor No. circuit low input

DETECTION CONDITION

The PCM monitors the APS No. signal. If the PCM detects that the APP sensor No. voltage is below 0.2 V , the PCM determines that the APP sensor No. circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (CCM).
MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
FREEZE FRAME DATA is available.
DTCs are stored in the PCM memory.

POSSIBLE CAUSE

APP sensor malfunction
Connector or terminal malfunction

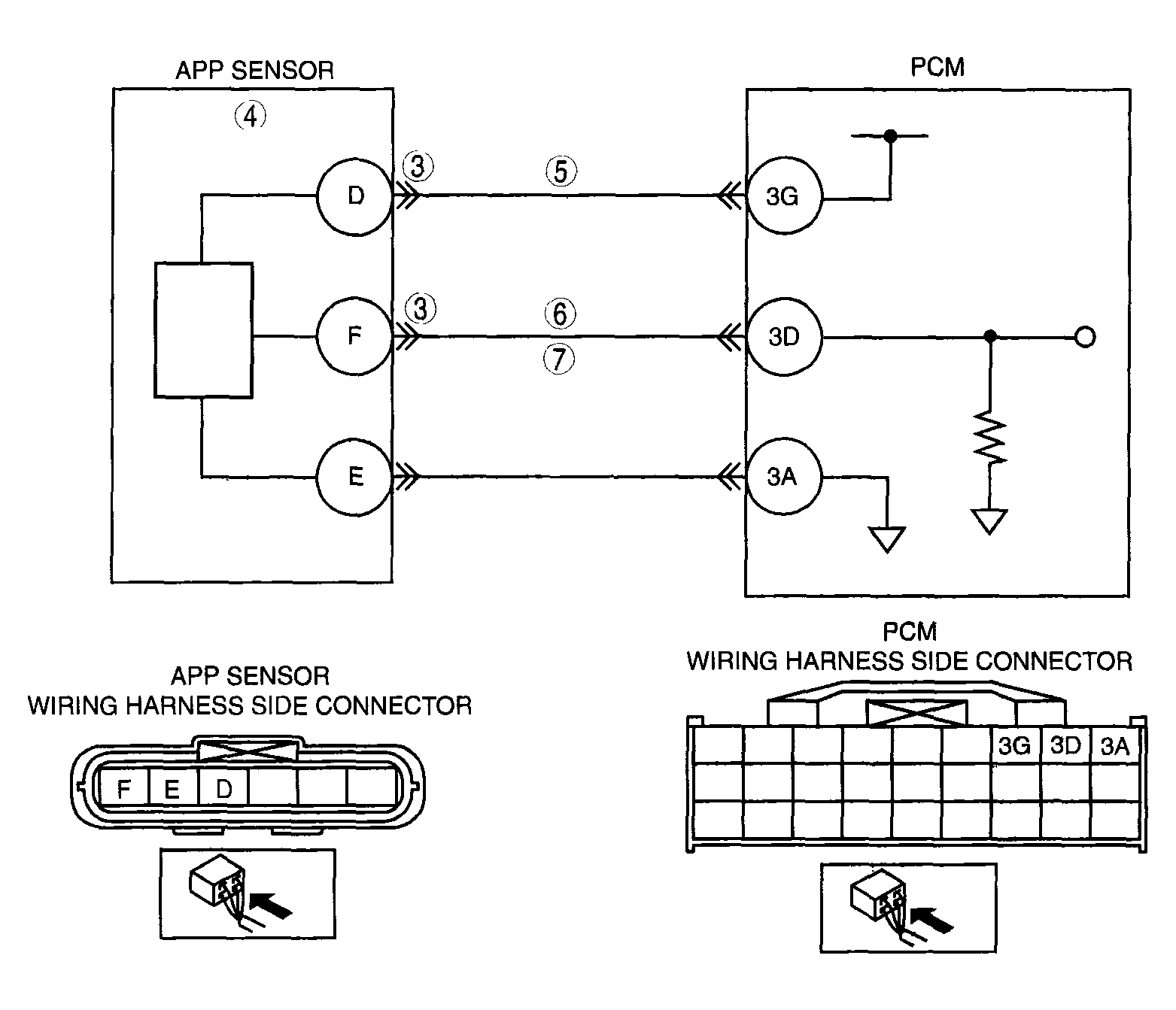

Open circuit between APP sensor terminal F and PCM terminal 3D
Short to ground circuit between APP sensor terminal F and PCM terminal 3D
Open circuit between APP sensor terminal D and PCM terminal 3G

Courtesy of MAZDA MOTORS CORP.
