2006 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE

DTC P2089: Notes

DTC P2089 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P2089

OCV actuator circuit high

DETECTION CONDITION

PCM monitors the OCV voltage. If the PCM detects that the OCV control voltage (calculated from OCV) is above the threshold voltage (calculated from battery positive voltage), the PCM determines that the OCV circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (CCM).
MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
FREEZE FRAME DATA is available.
DTCs are stored in the PCM memory.

POSSIBLE CAUSE

Poor connection at the PCM and/or OCV connectors

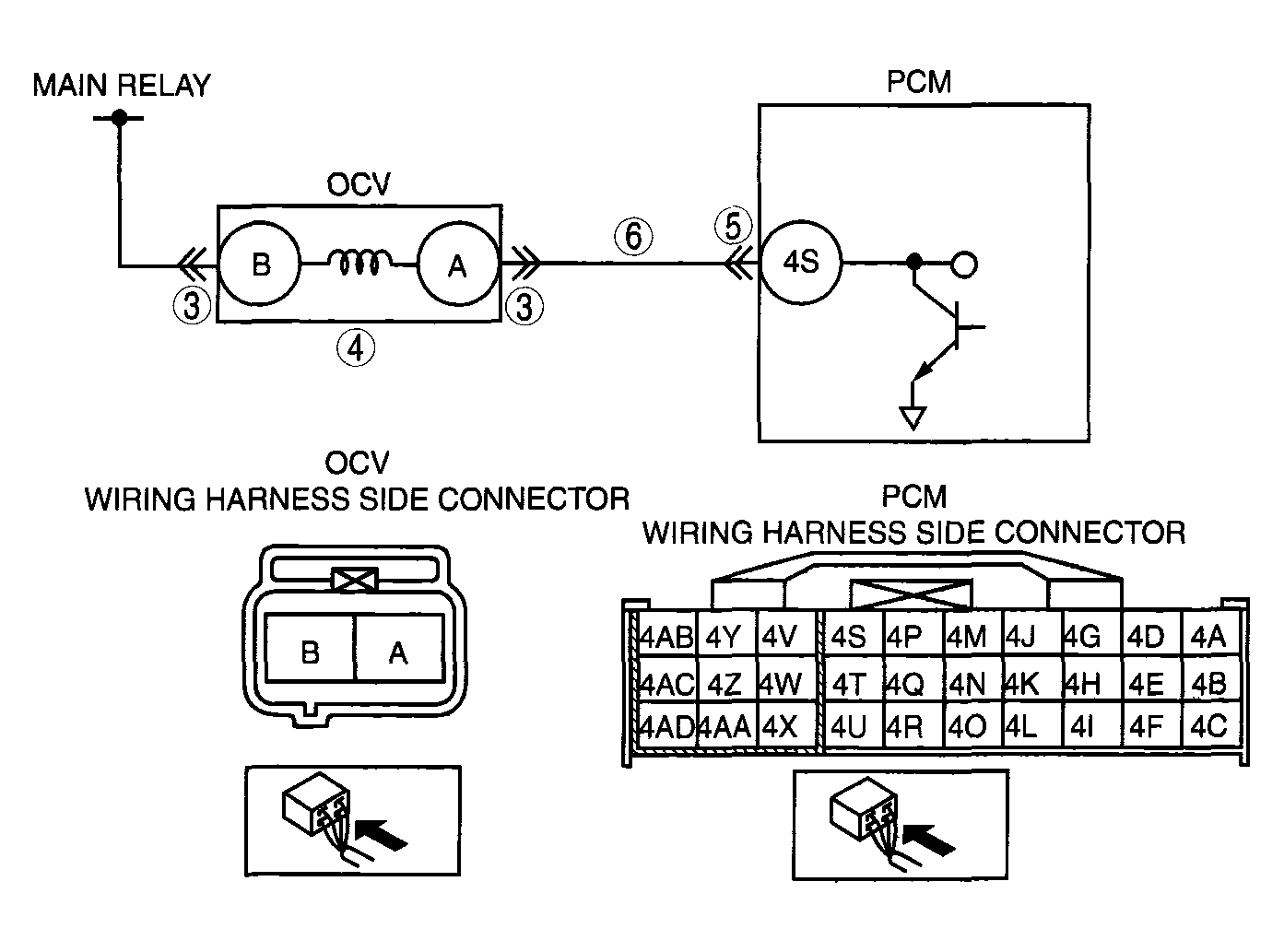

Short to the power supply in the wiring harness between OCV terminal A and PCM terminal 4S
OCV malfunction
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
