2006 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE

DTC P0564: Notes

DTC P0564 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0564

Cruise control switch circuit malfunction

DETECTION CONDITION

The PCM monitors the cruise control switch signal. If the PCM detects that any one of following switches (Main, CANCEL, SET/COAST, RESUME/ACCEL) remains on for 2 min , the PCM determines that the cruise control switch circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (Other).
MIL does not illuminate.
FREEZE FRAME DATA is not available.
DTCs are stored in PCM memory.

POSSIBLE CAUSE

Cruise control switch malfunction
Connector or terminal malfunction

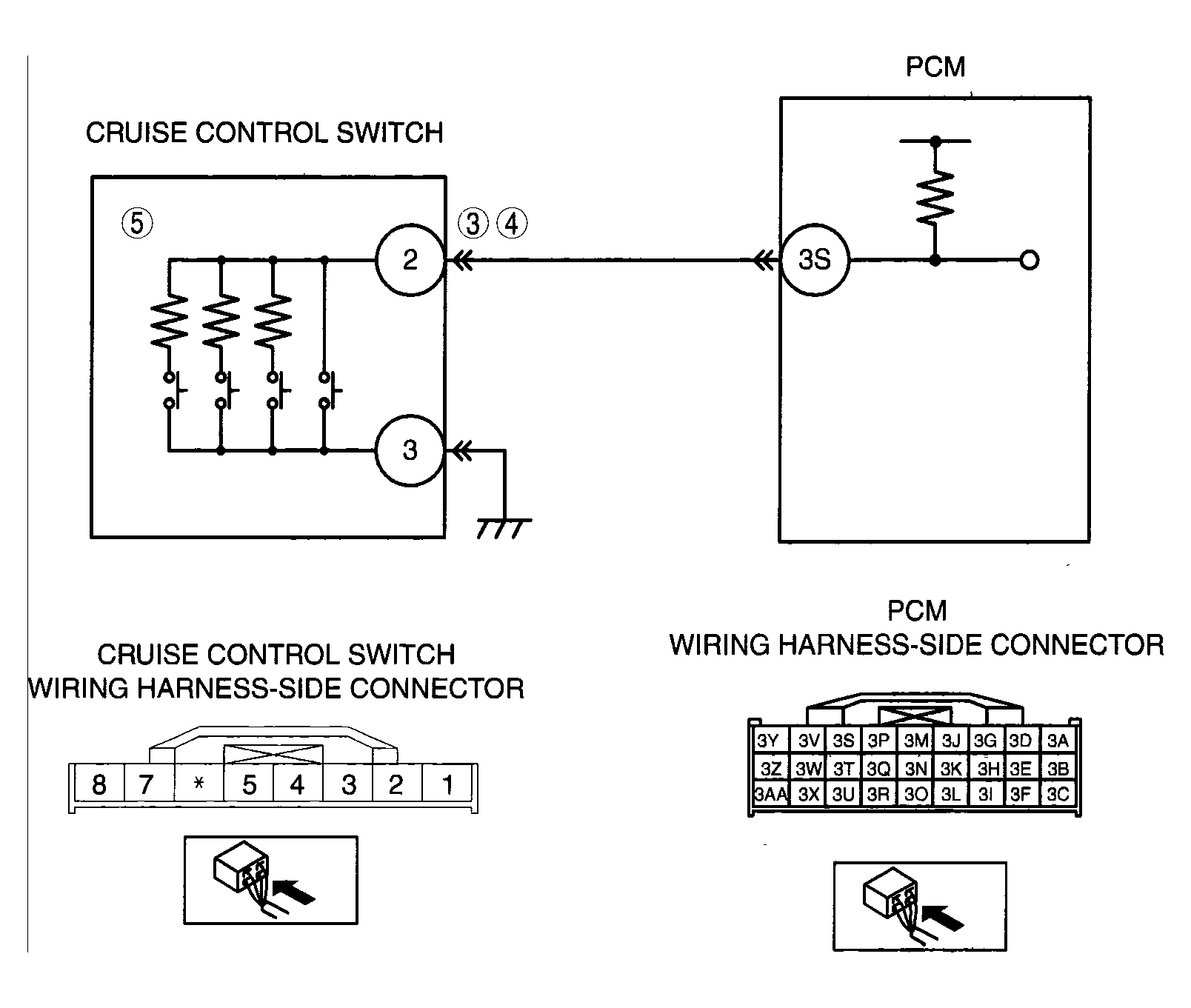

Short to power circuit in wiring harness from cruise control switch terminal 2 and PCM terminal 3S
Short to ground circuit in wiring harness from cruise control switch terminal 2 and PCM terminal 3S
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
