2006 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE

DTC P0192: Notes

DTC P0192 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0192 Fuel rail pressure sensor circuit low input
DETECTION CONDITION
  • If the input voltage from the fuel pressure sensor is less than 0.19 V  for 1.3 s  , the PCM determines that the fuel pressure sensor circuit is low.

Diagnostic support note
  • This is a continuous monitor (CCM).
  • The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
  • FREEZE FRAME DATA is available.
  • DTCs are stored in the PCM memory.
POSSIBLE CAUSE
  • Fuel pressure sensor malfunction
  • Short to ground in wiring harness between fuel pressure sensor terminal B and PCM terminal 1V
  • Connector or terminal malfunction
  • PCM malfunction

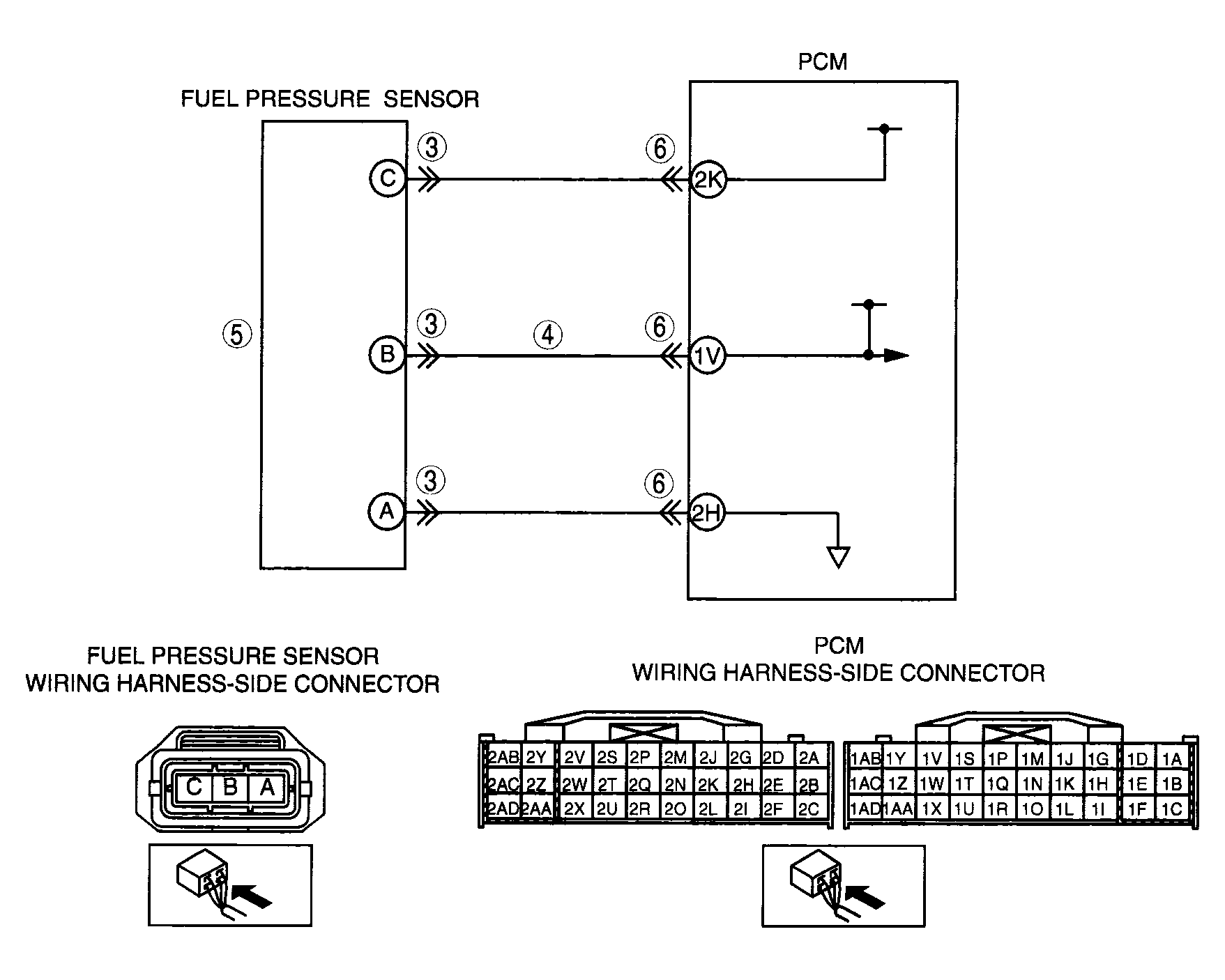

G04324109Courtesy of MAZDA MOTORS CORP.
