2006 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE

DTC P0123: Notes

DTC P0123 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0123

TP sensor No. circuit high input

DETECTION CONDITION

If the PCM detects that the TP sensor No. voltage is above 4.9 V after ignition switch to the ON position, PCM determines that TP circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (CCM).
MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
FREEZE FRAME DATA is available.
DTCs are stored in the PCM memory.

POSSIBLE CAUSE

TP sensor malfunction
Connector or terminal malfunction

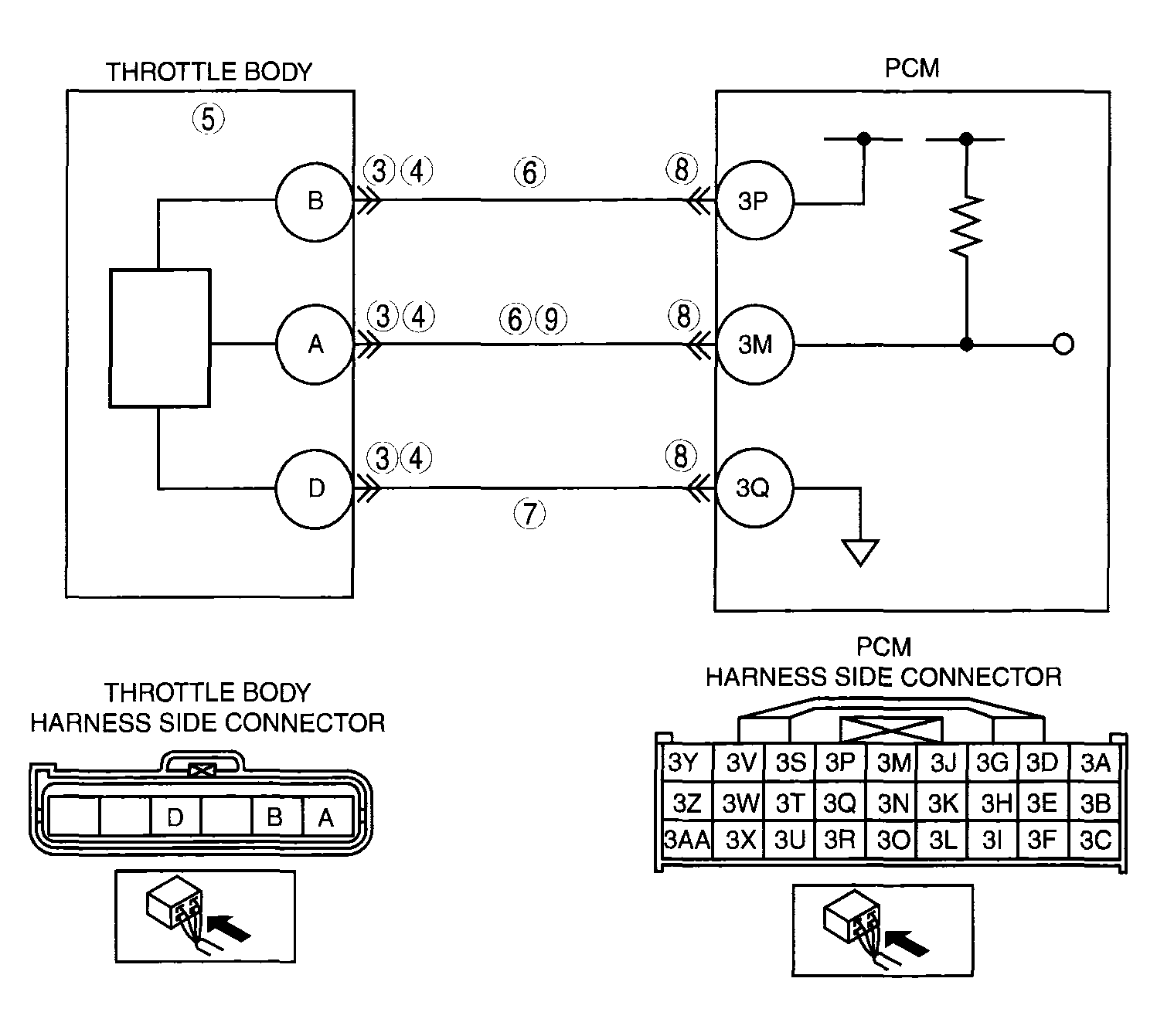

Open circuit between throttle body terminal B and PCM terminal 3P
Open circuit between throttle body terminal D and PCM terminal 3Q
Short to the constant voltage supply circuit between throttle body terminal A and PCM terminal 3M

Courtesy of MAZDA MOTORS CORP.
