2006 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE

DTC P0117: Notes

DTC P0117 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0117

ECT sensor circuit low input

DETECTION CONDITION

The PCM monitors the ECT sensor signal. If the PCM detects the ECT sensor voltage below 0.2 V , the PCM determines that the ECT sensor circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (Engine cooling system).
The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
FREEZE FRAME DATA is available.
DTCs are stored in the PCM memory.

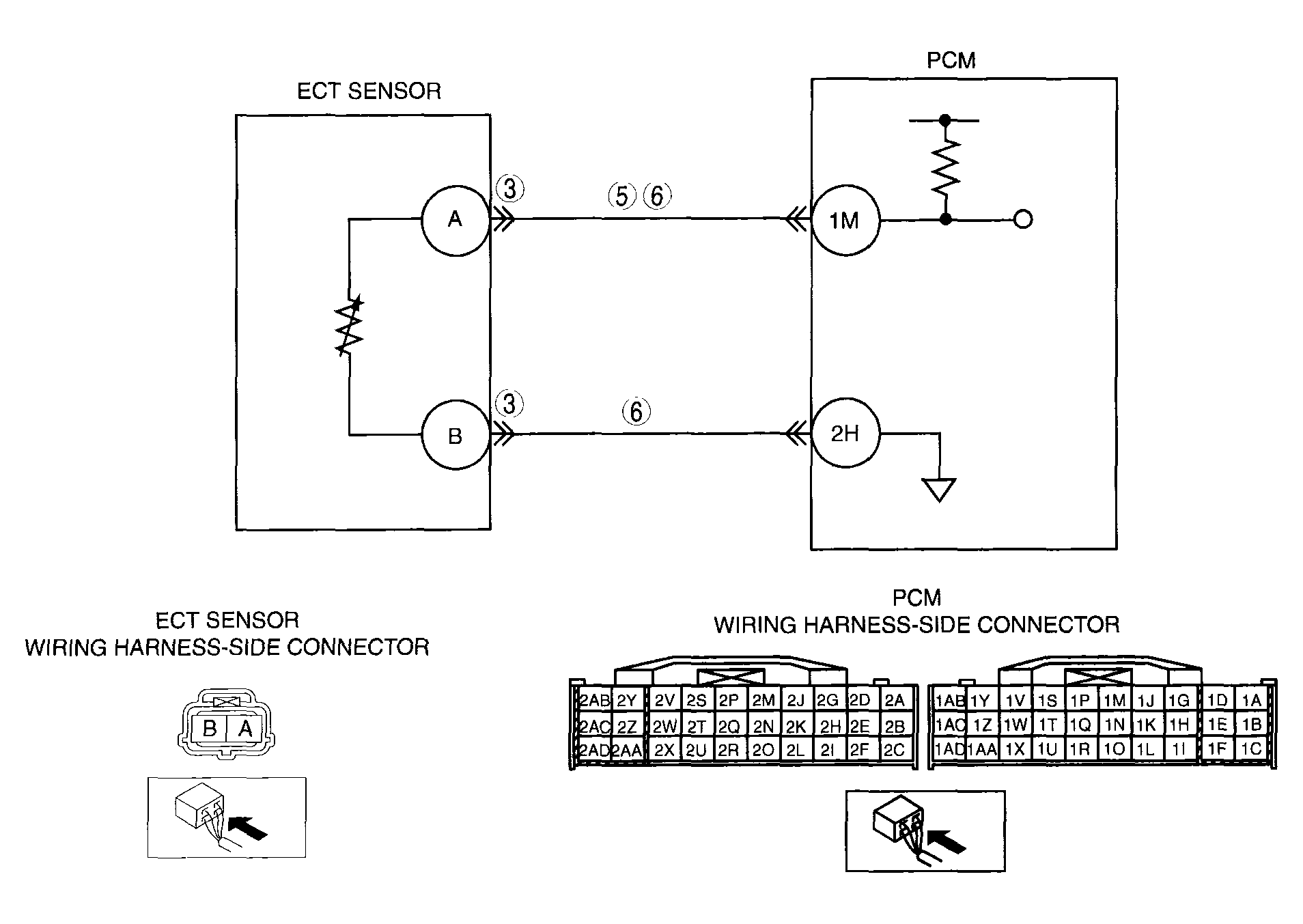

POSSIBLE CAUSE

ECT sensor malfunction
Connect or terminal malfunction
Short to ground in the wiring harness between ECT sensor terminal A and PCM connector terminal 1M
Short to each wiring harness in ECT signal circuit and ECT ground circuit
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
