2006 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE

DTC P0116: Notes

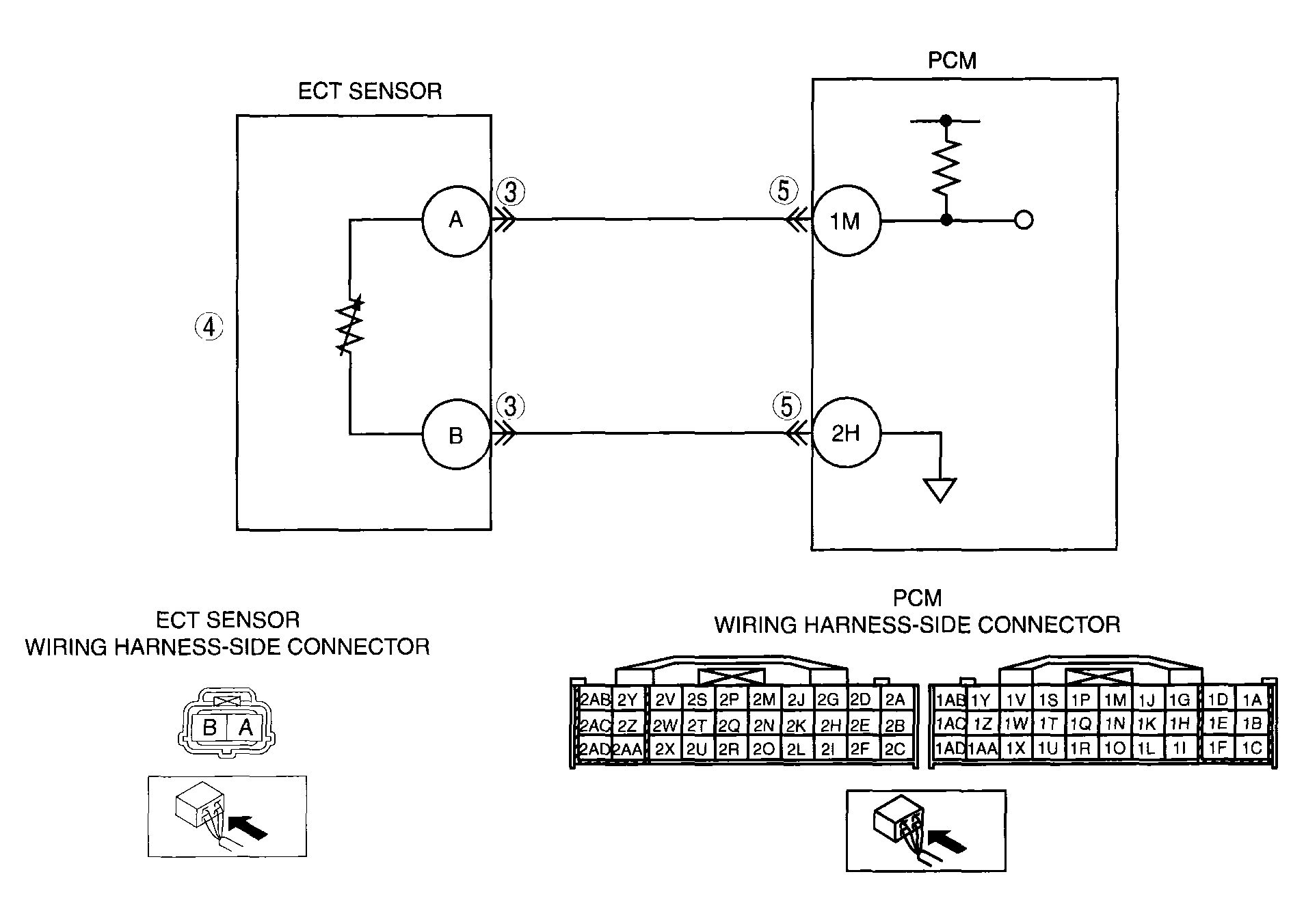

DTC P0116 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0116

ECT circuit range/performance problem

DETECTION CONDITION

The PCM monitors the maximum value and minimum value of engine coolant temperature when the engine is started and 5 min have been passed after leaving the vehicle 6 h or more . If the difference between the maximum and the minimum values of the engine coolant temperature is below 6°C {10.8°F} , the PCM determines that there is an ECT circuit range/performance problem.

Diagnostic support note

This is a continuous monitor (CCM).
The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
FREEZE FRAME DATA is available.
DTCs are stored in the PCM memory.

POSSIBLE CAUSE

ECT sensor malfunction
Connector or terminal malfunction
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
