2006 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE

DTC P0113: Notes

DTC P0113 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0113

IAT circuit high input

DETECTION CONDITION

The PCM monitors the IAT sensor signal. If the PCM detected IAT sensor voltage above 4.9 V , the PCM determines that the IAT sensor circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (CCM).
MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
FREEZE FRAME DATA is available.
DTCs are stored in the PCM memory.

POSSIBLE CAUSE

IAT sensor malfunction

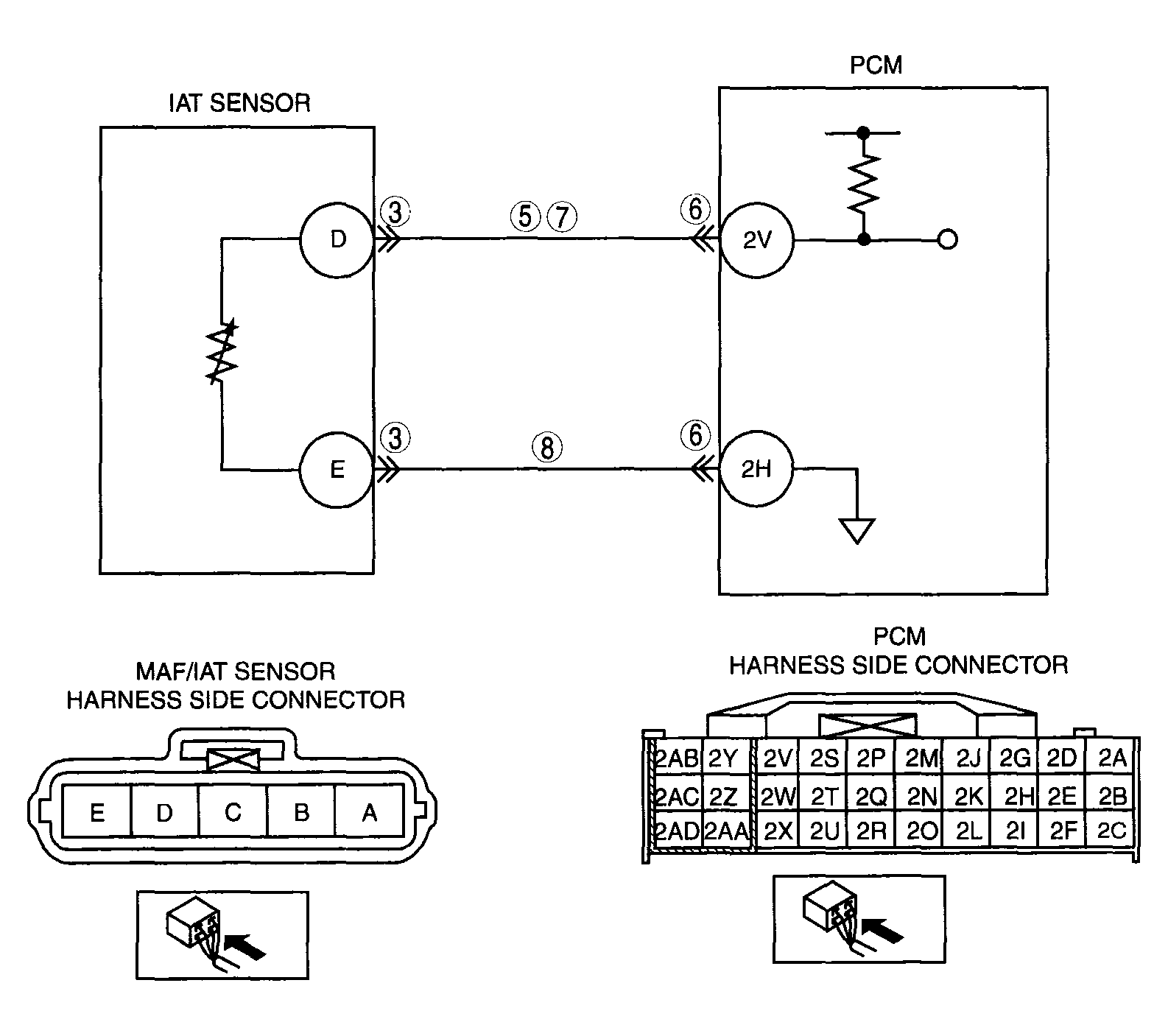

Open circuit between MAF/IAT sensor terminal D and PCM terminal 2V
Short to the power supply between MAF/IAT sensor terminal D and PCM terminal 2V
Open circuit between MAF/IAT sensor terminal E and PCM terminal 2H
Poor connection at the MAF/IAT sensor or the PCM connector.
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
