2006 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE

DTC P0108: Notes

DTC P0108 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0108

MAP sensor circuit high input

DETECTION CONDITION

PCM monitors input voltage from the MAP sensor when the intake air temperature is above -10°C {14°F} . If the input voltage is above 4.9 V , the PCM determines that MAP sensor circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (CCM).
MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
FREEZE FRAME DATA is available.
DTCs are stored in the PCM memory.

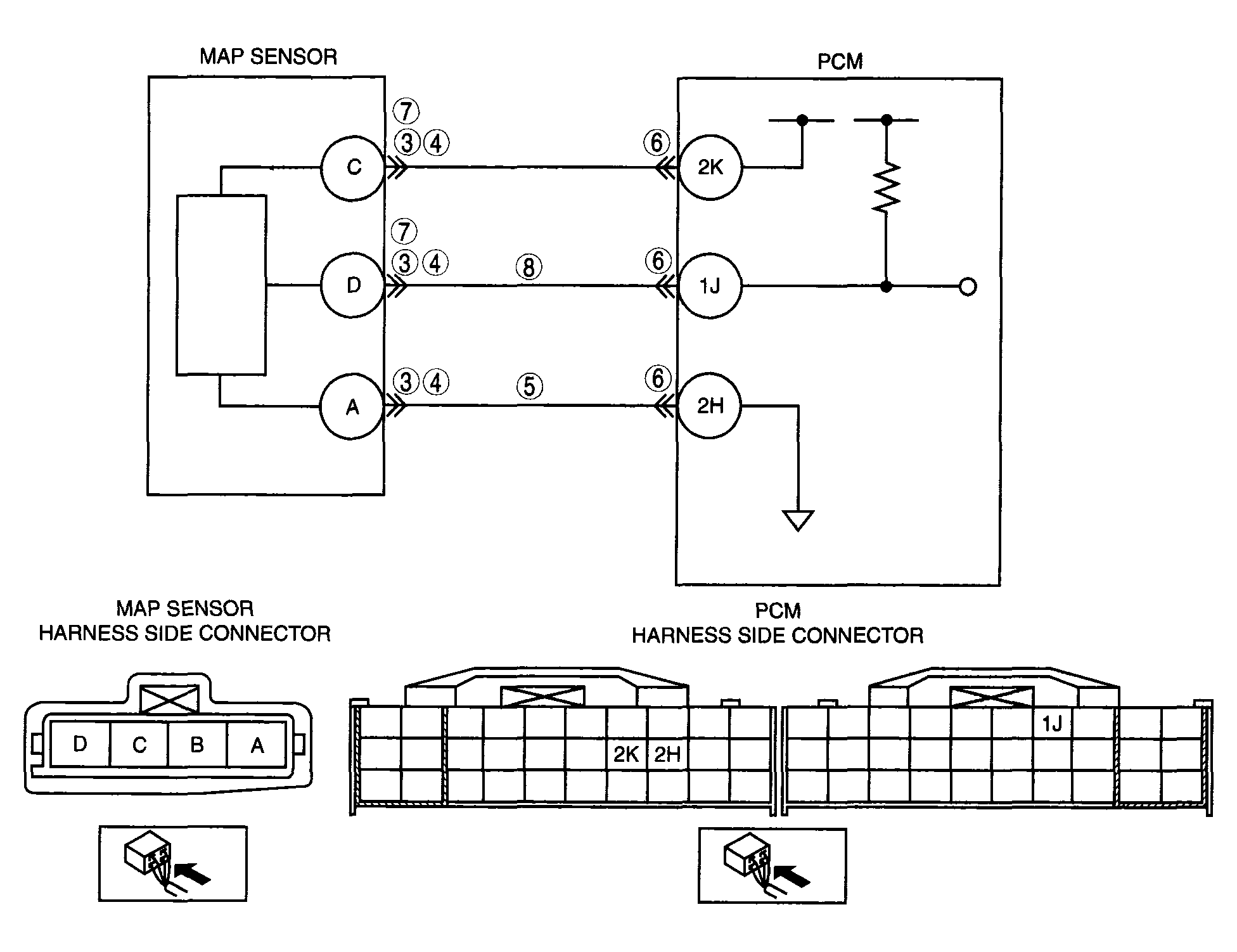

POSSIBLE CAUSE

MAP sensor malfunction
Connector or terminal malfunction
Open circuit in the wiring harness between MAP sensor terminal A and PCM terminal 2H
Open circuit in the wiring harness between MAP sensor terminal D and PCM terminal 1J
MAP sensor signal circuit short to the constant voltage supply circuit
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
