2006 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE

DTC P0107: Notes

DTC P0107 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0107

MAP sensor circuit low input

DETECTION CONDITION

PCM monitors input voltage from the MAP sensor when the intake air temperature is above -10°C {14°F}. If the input voltage is below 0.10 V , the PCM determines that the MAP sensor circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (CCM).
MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
FREEZE FRAME DATA is available.
DTCs are stored in the PCM memory.

POSSIBLE CAUSE

MAP sensor malfunction
Connector or terminal malfunction

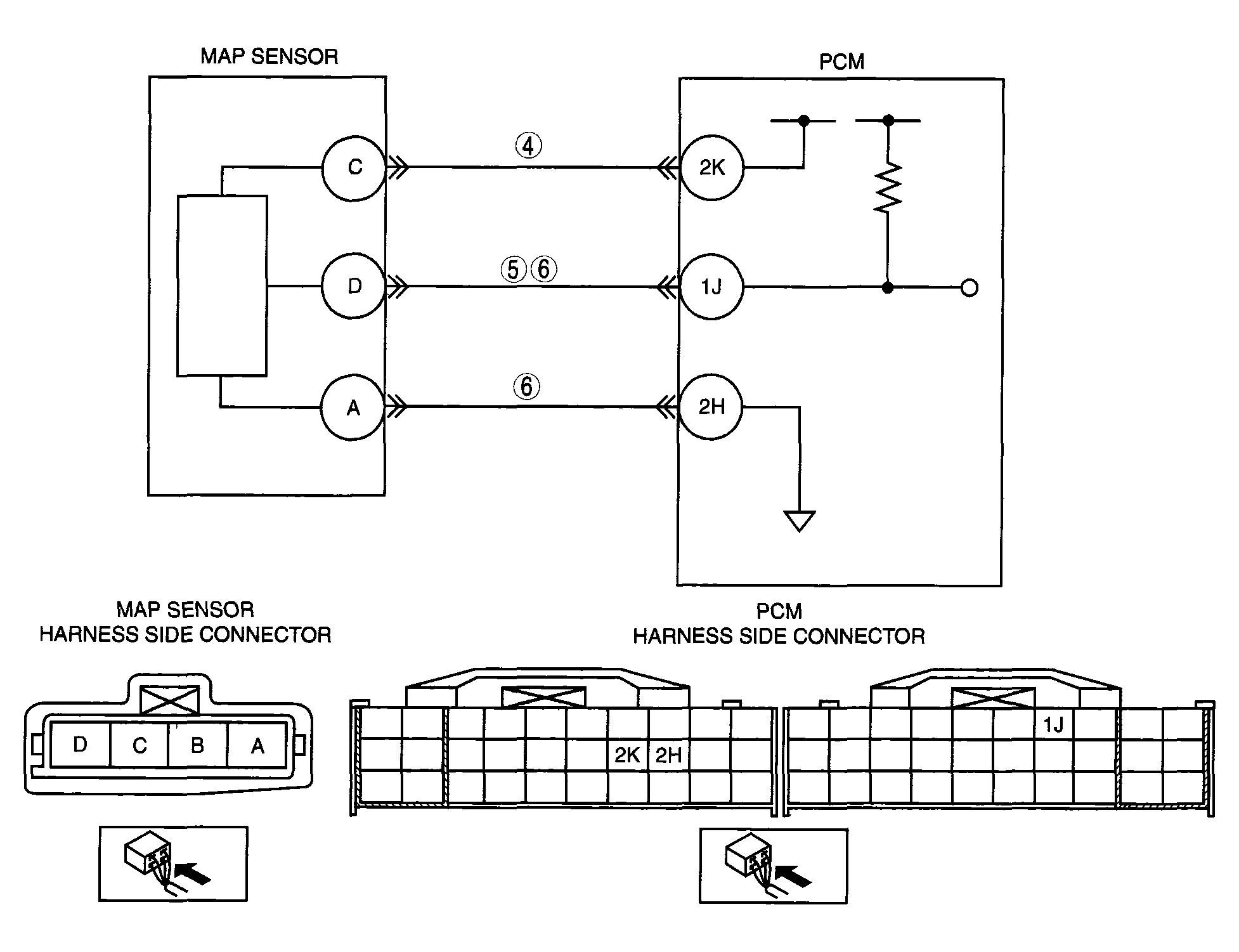

Short to ground in the wiring harness between MAP sensor terminal D and PCM terminal 1J
Open circuit in the wiring harness between MAP sensor terminal C and PCM terminal 2K
MAP sensor signal circuit and MAP sensor ground circuit are shorted to each other.
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
