2006 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE

DTC P0102: Notes

DTC P0102 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0102

MAP circuit low input

DETECTION CONDITION

PCM monitors input voltage from the MAF sensor when engine is running. If the input voltage is below 0.21 V , the PCM determines that the MAF circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (CCM).
MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
FREEZE FRAME DATA is available.
DTCs are stored in the PCM memory.

POSSIBLE CAUSE

MAF sensor malfunction
Connector or terminal malfunction

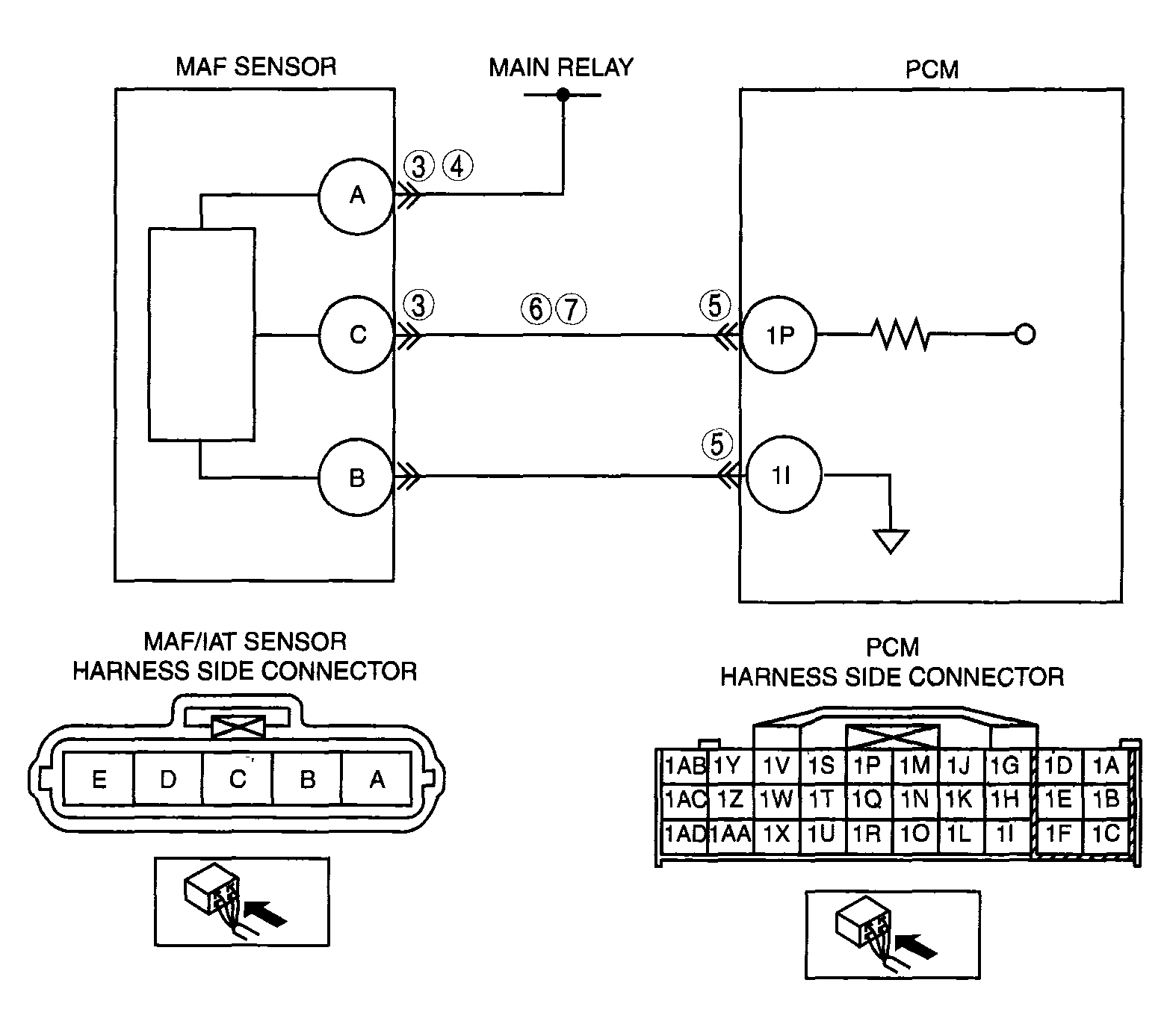

Short to ground in the wiring harness between MAF/IAT sensor terminal C and PCM terminal 1P
Open circuit in the wiring harness between MAF/IAT sensor terminal C and PCM terminal 1P
Open circuit in the wiring harness between main relay and MAF/IAT sensor terminal A

Courtesy of MAZDA MOTORS CORP.
