2006 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE

DSC Off Switch Inspection

Remove the DSC OFF switch.
Inspect for continuity between the DSC OFF switch terminals using an ohmmeter.

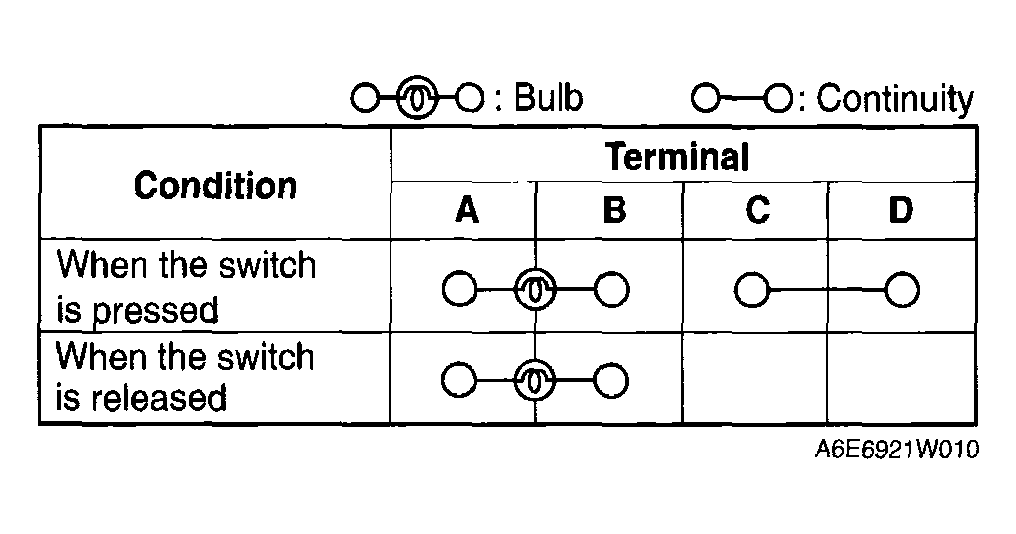

Fig 1: Continuity Table
Courtesy of MAZDA MOTORS CORP.
- If not within the specification, replace the DSC OFF switch.

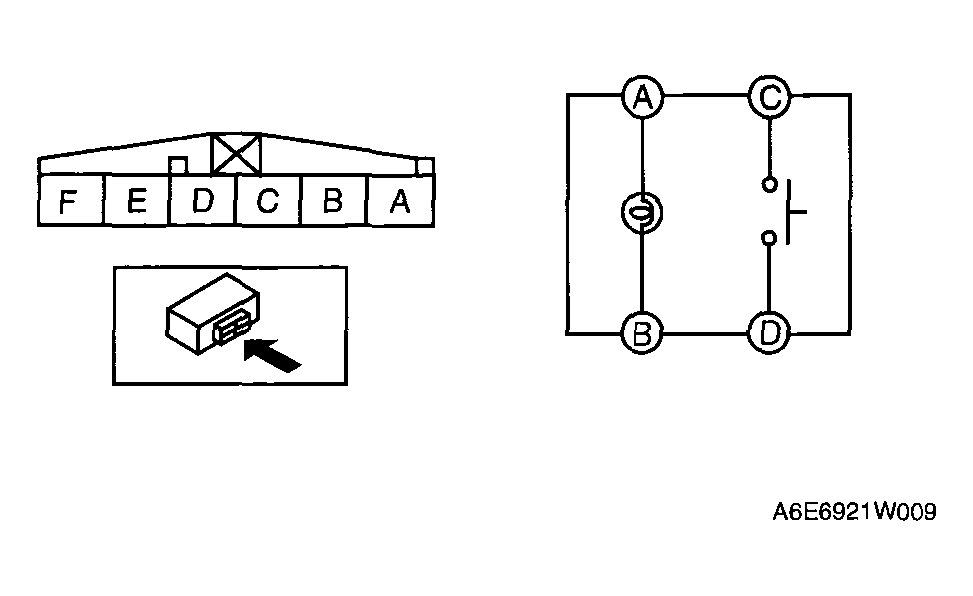

  Fig 2: Inspecting Continuity Between DSC Off Switch Terminals
  Courtesy of MAZDA MOTORS CORP.
