Forward-G Sensor Inspection

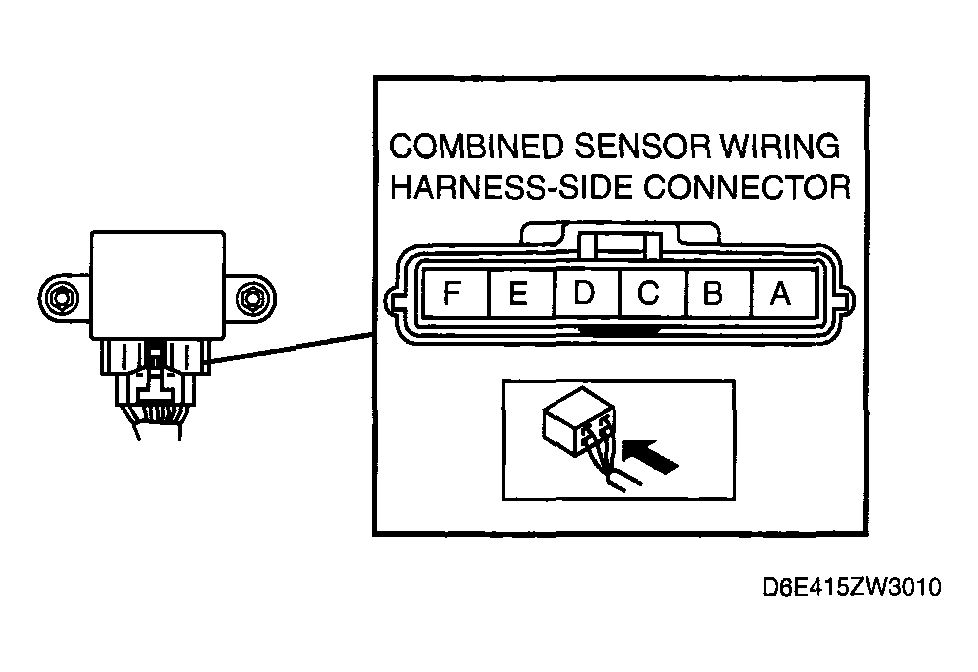

- Connect the connector.
- Turn ignition switch on, verify the voltage between terminals A and ground terminal E under the following conditions.
- Horizontal
Voltage
2.2-2.8 V

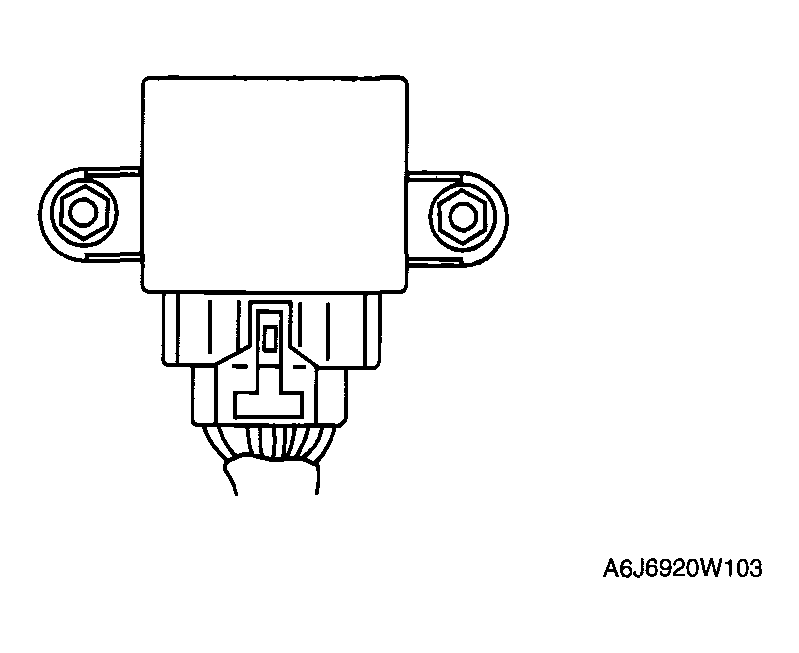

- Acceleration (inclined 90°
from horizontal)
Voltage
3.1-3.9 V

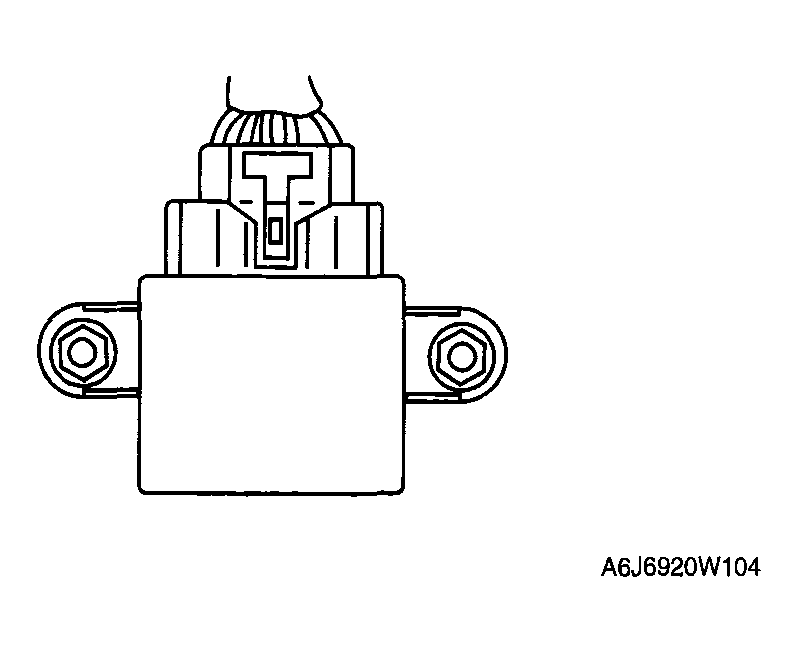

- Deceleration (decline 90°
from horizontal)
Voltage
1.2-1.8 V
- Horizontal
