2005 Mazda Tribute s, FWDFACTORY OEM SERVICE PROCEDURE
Lean Correction
NOTE:
- When installing a new coil spring, install a new one with the same part number and the same spring code.

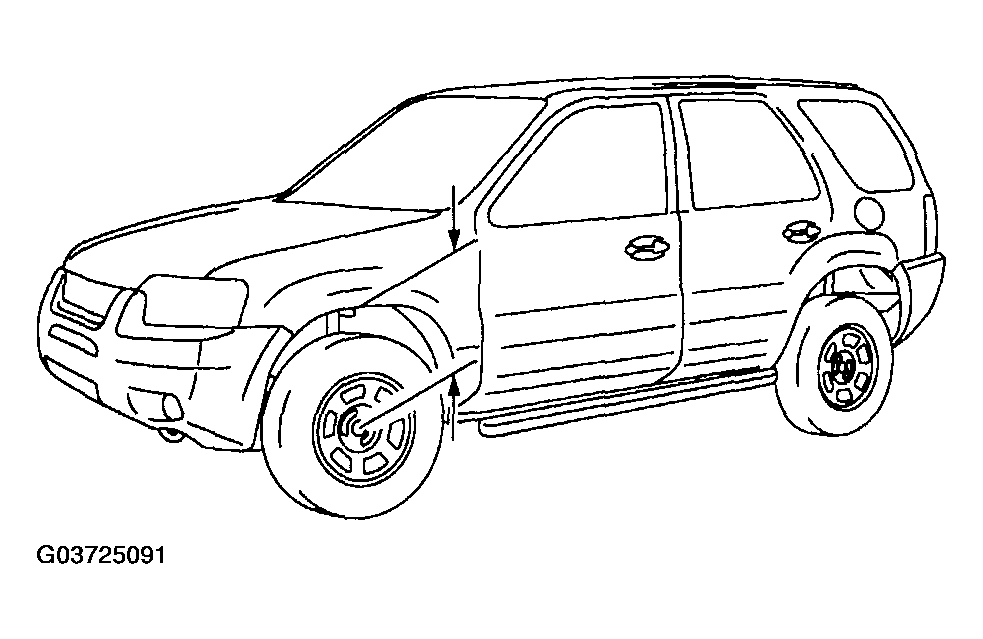

- Measure the distance from the wheelhouse opening to the center of the wheel and tire at the same point on both sides of the vehicle.
- If the difference exceeds 10 mm (0.4 in), a lean correction is necessary.
Compare the original with a new coil spring. Note the difference.
- Remove the higher side coil spring.
- If the original coil spring exceeds the height of the new one by 10 mm (0.4 in), install the new coil spring in the vehicle; for additional information see STRUT AND SPRING -- FRONT or SPRING .
- If the original coil spring is shorter than the new one by 10 mm (0.4 in), remove the low side coil spring from the vehicle; for additional information see STRUT AND SPRING -- FRONT or SPRING .
- Compare all three coil springs and select the two most evenly matched for installation.
