2005 Mazda Tribute 2WD L4-2.3LFACTORY OEM SERVICE PROCEDURE
Temperature Control Switch
Removal and Installation
1. Remove the instrument panel center finish panel.

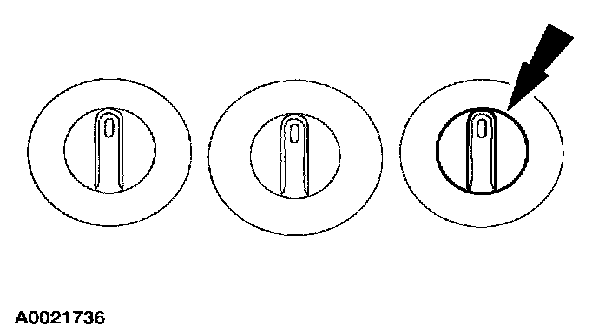

2. Remove the temperature control switch knob.
3. Disconnect the temperature blend door control cable.
1. Align the locator holes and insert the special tool.
2. Release the locking tabs.
3. Remove the temperature blend door control cable from the blend door shaft.
4. Depress the three tabs and remove the temperature blend door control cable.
5. Remove the temperature control switch.
1. Remove the screw.
2. Depress the tab and rotate the temperature control switch counterclockwise.
6. Rotate the gear to align the locking tab with the notch in the gear before installing.
7. To install, reverse the removal procedure.
1. Remove the instrument panel center finish panel.
2. Remove the temperature control switch knob.
3. Disconnect the temperature blend door control cable.
1. Align the locator holes and insert the special tool.
2. Release the locking tabs.
3. Remove the temperature blend door control cable from the blend door shaft.
4. Depress the three tabs and remove the temperature blend door control cable.
5. Remove the temperature control switch.
1. Remove the screw.
2. Depress the tab and rotate the temperature control switch counterclockwise.
6. Rotate the gear to align the locking tab with the notch in the gear before installing.
7. To install, reverse the removal procedure.
