2005 Mazda MX-5 Miata Base, AutomaticFACTORY OEM SERVICE PROCEDURE

FP Assembly Note

After installing the FP to the bracket, pull the pump down so that it is flush against the bracket and there is no gap.

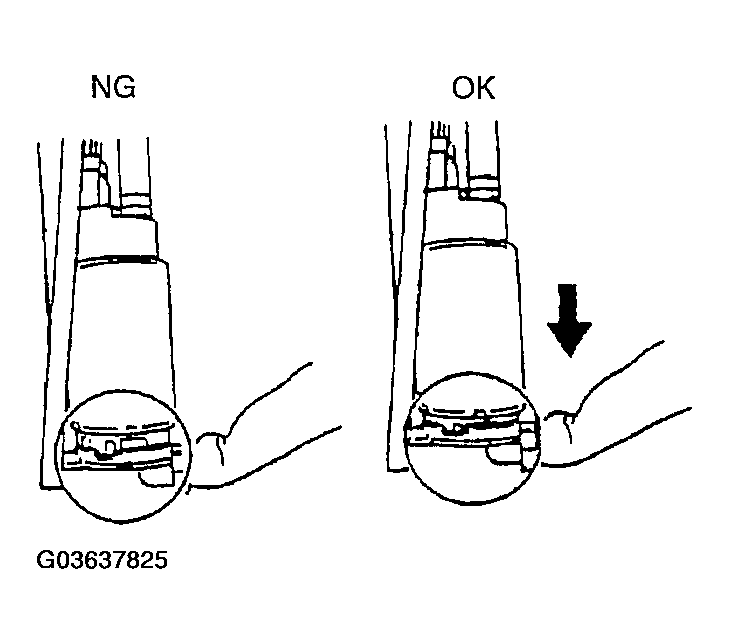

Fig 1: Installing FP To Bracket
Courtesy of MAZDA MOTORS CORP.
