2005 Mazda MPV LXFACTORY OEM SERVICE PROCEDURE
Circuit Open/Short Inspection: Notes
- Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)

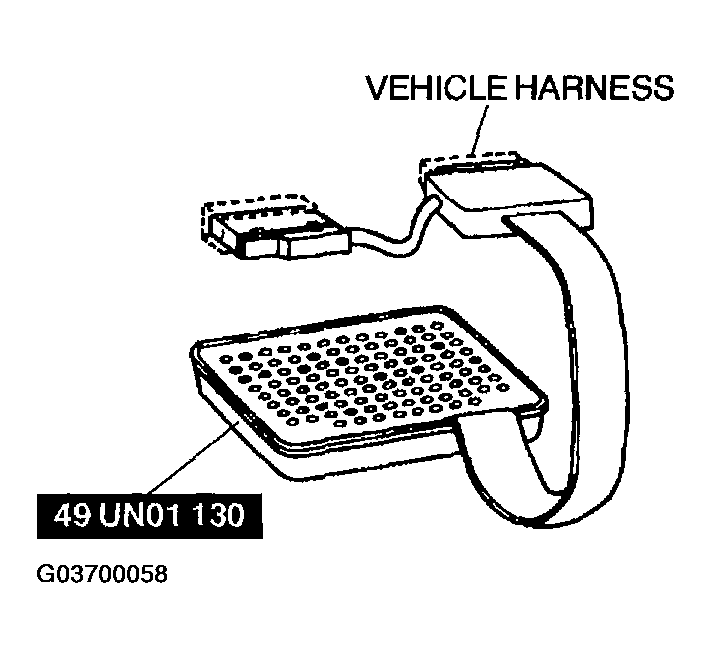

- Connect the SST (104 Pin Breakout Box) with the PCM disconnected.
- Tighten the connector attaching bolt.
Tightening torque
- 3.0-5.4 N.m {30-56 kgf.cm, 27-48 in.lbf}

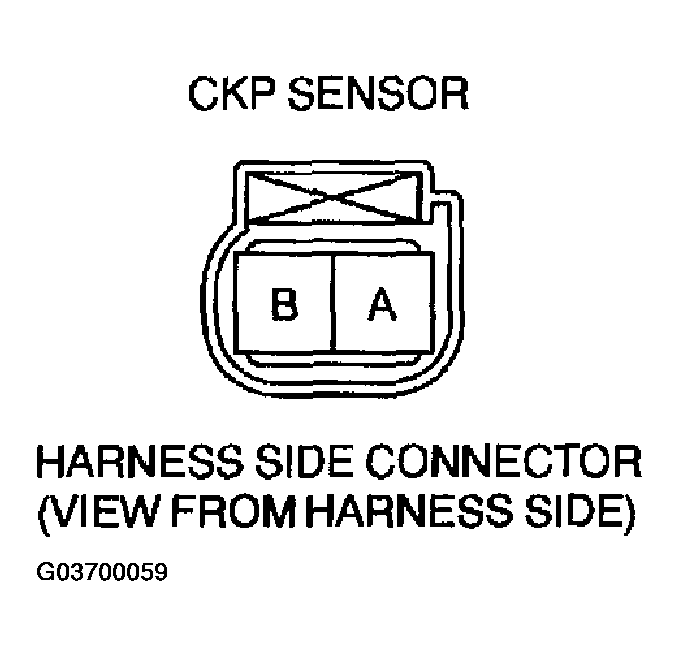

- Inspect the following wiring harness for open or short circuit (Continuity check).
