Verify that sound is output from the front door speaker.
- If sound is output, go to the next step.
- If no sound is not output, inspect the front door speaker and the related wiring harnesses.
Remove the following parts:
1. Remove the rear seat. (See REAR SEAT REMOVAL/INSTALLATION .)
2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
3. Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
4. Remove the rear pillar trim. (See REAR PILLAR TRIM REMOVAL/INSTALLATION .)
5. Remove the rear package center trim and the rear package side trim. (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
6. Remove the main amplifier. (See AUDIO AMPLIFIER REMOVAL/INSTALLATION .)
Verify that the continuity between the front tweeter and the main amplifier is as indicated. See Fig 1 .
- If the continuity is not as indicated, repair or replace the related wiring harnesses.
- If the continuity is as indicated, replace the front tweeter.

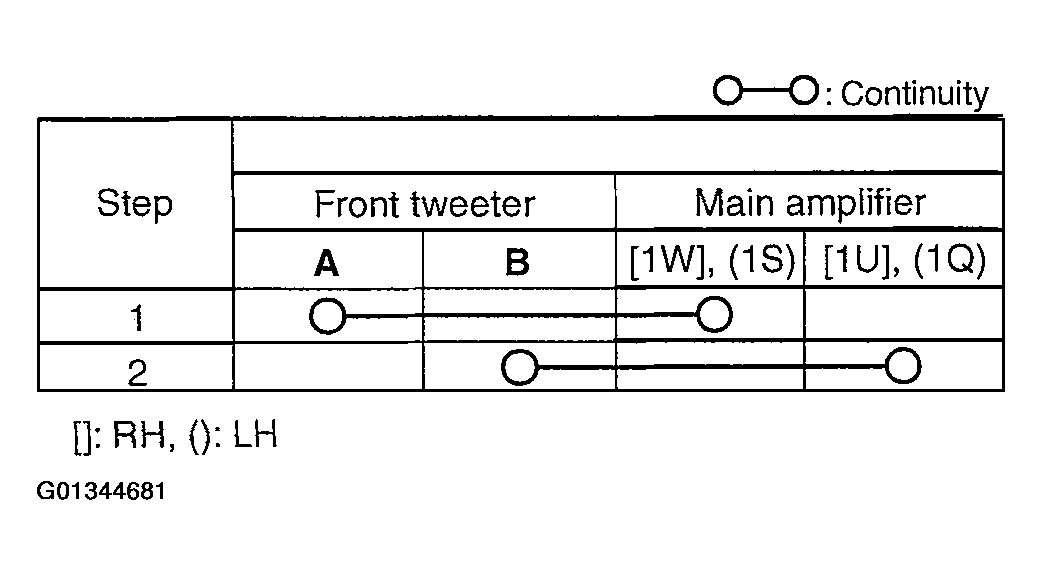

Fig 1: Checking Front Tweeter & Main Amplifier Terminal Continuity
Courtesy of MAZDA MOTORS CORP.
