2005 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Socket Removal Note
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Insert a tape-wrapped Flathead screwdriver into the socket hole and push on the ring projection to lift the socket outward.

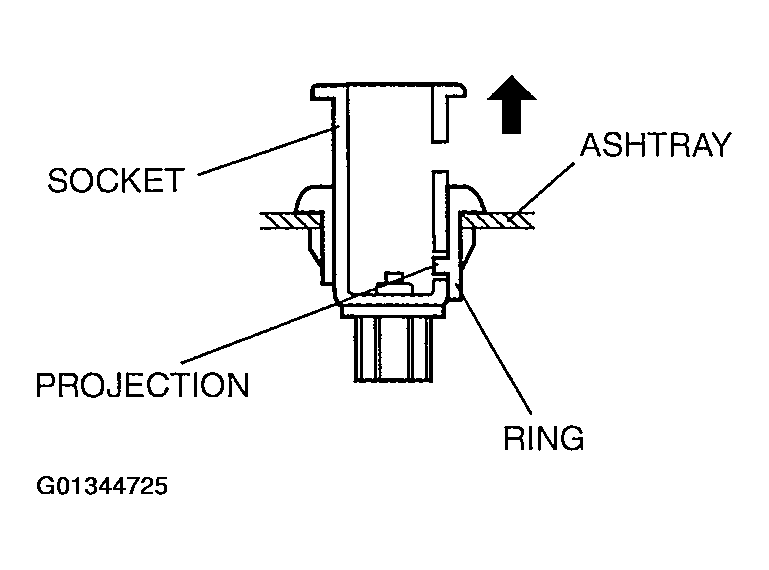

- Lift out the socket until the ring projection locks into the lower socket hole as shown, See .

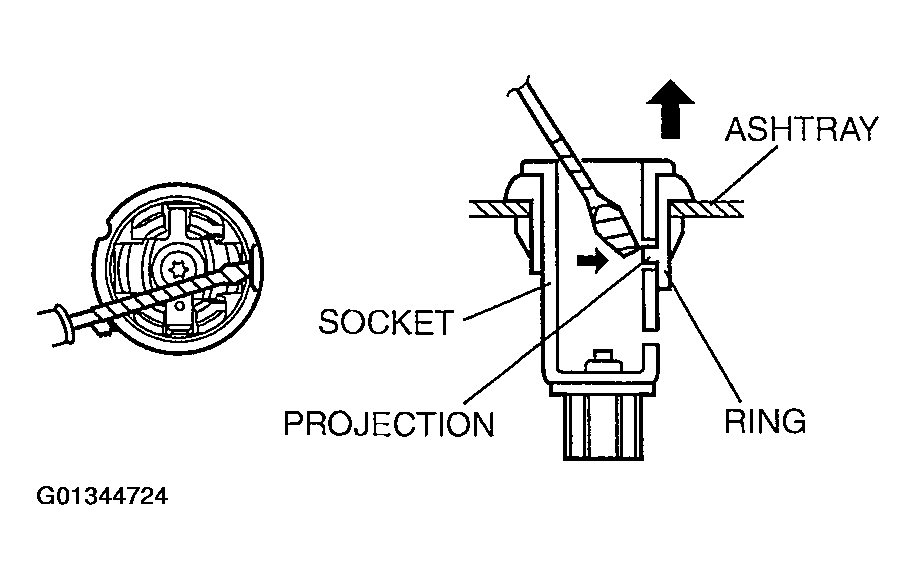

- From the rear of the ashtray, insert a tape-wrapped Flathead screwdriver between the socket and the ring as shown. See Fig 3.

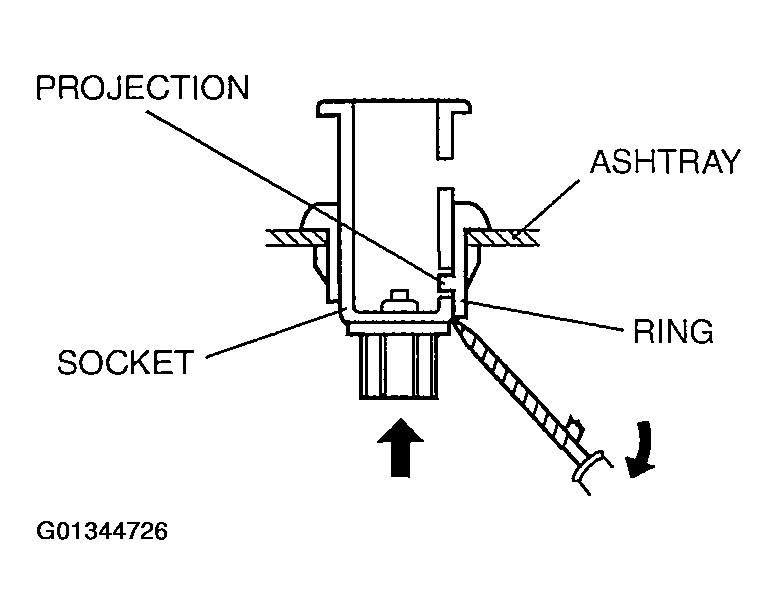

- While lifting the ring projection with the Flathead screwdriver, push out and remove the socket.
