2005 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Center Panel Module Removal/Installation: Notes
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
- Remove the ashtray panel. (See CONSOLE REMOVAL/INSTALLATION .)
- Remove the ventilator grille (center.) (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)

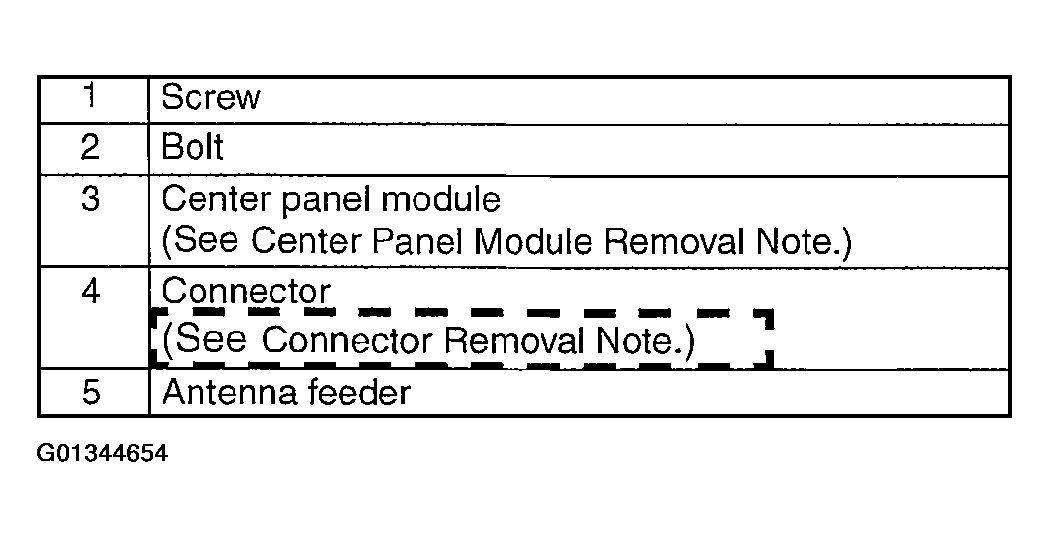

- Remove in the order indicated. See Fig 1 .
