2005 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Center Panel Module Removal Note
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

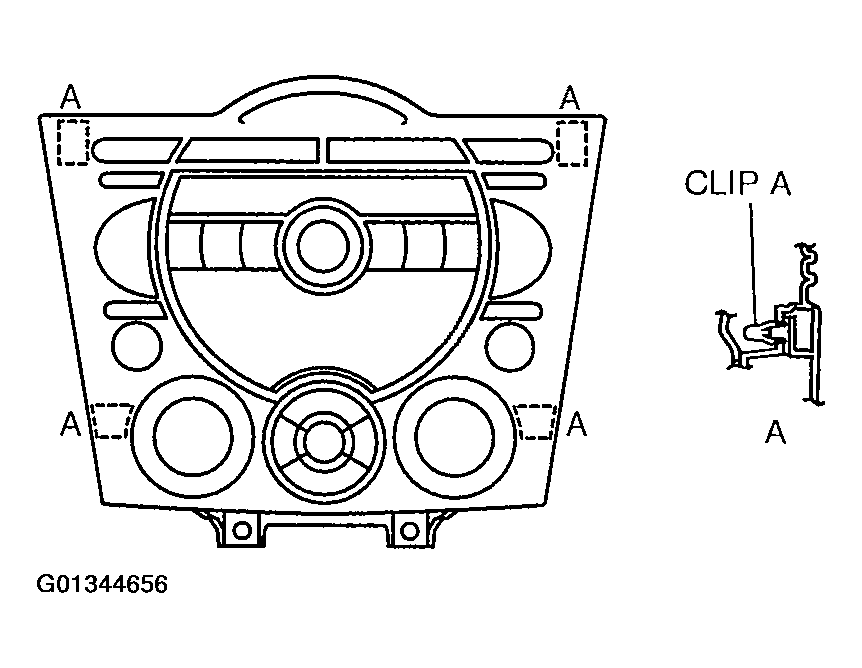

- Pull the center panel module outward, detach clip A from the dashboard, and then remove the center panel module.
Connector Removal Note
- Put your hand through the opening where the ventilator grille was removed and disconnect the connectors.CAUTION:
- When putting your hand through the opening, be careful not to contact the panel edge or sharp parts to avoid injury.
