2005 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Starter Removal/Installation
WARNING:
- When the battery cables are connected, touching the vehicle body with starter terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery before performing the following operation.
- Remove the battery.
- Remove the air cleaner.
- Disconnect the selector cable. (See SELECTOR LEVER REMOVAL/INSTALLATION .)

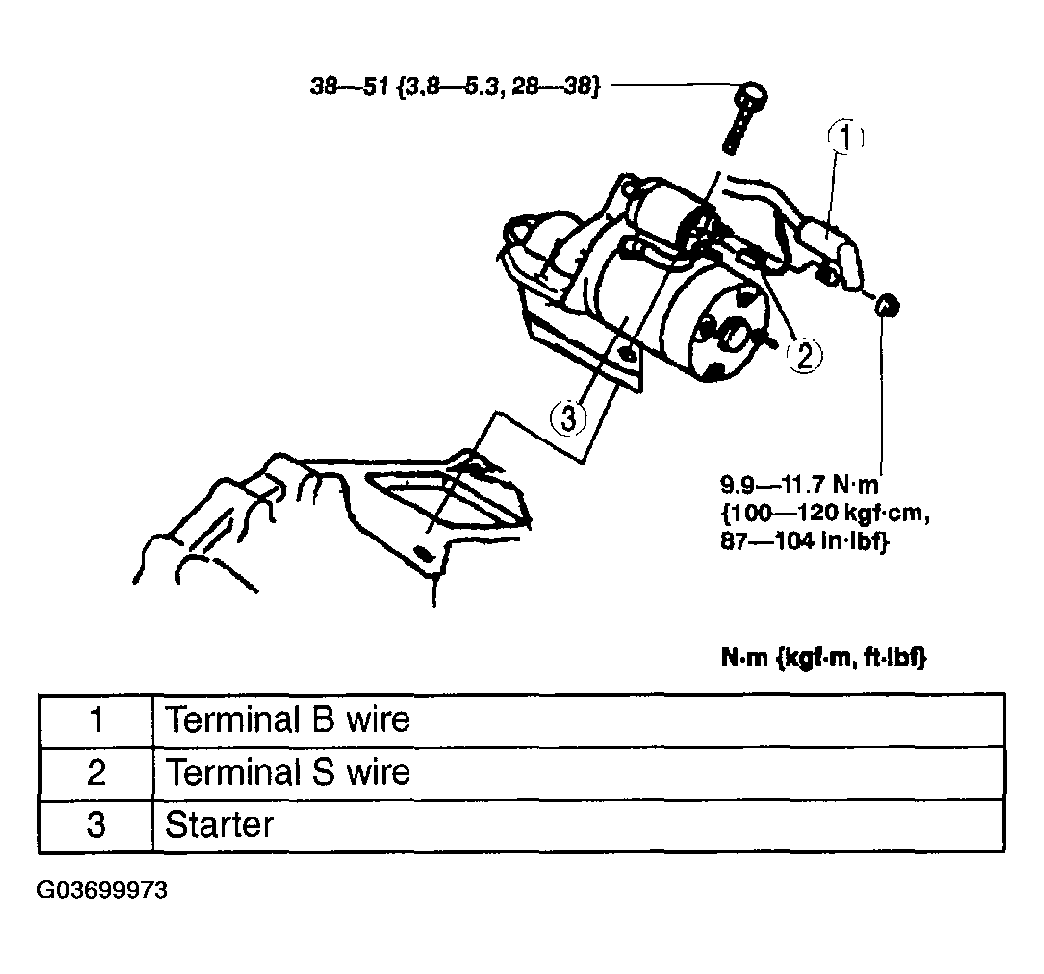

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
