2005 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

Front Abs Wheel-Speed Sensor Removal/Installation

For left side, remove the air cleaner and air filter. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM COMPONENT REMOVAL/INSTALLATION )
Remove in the order indicated in the table.

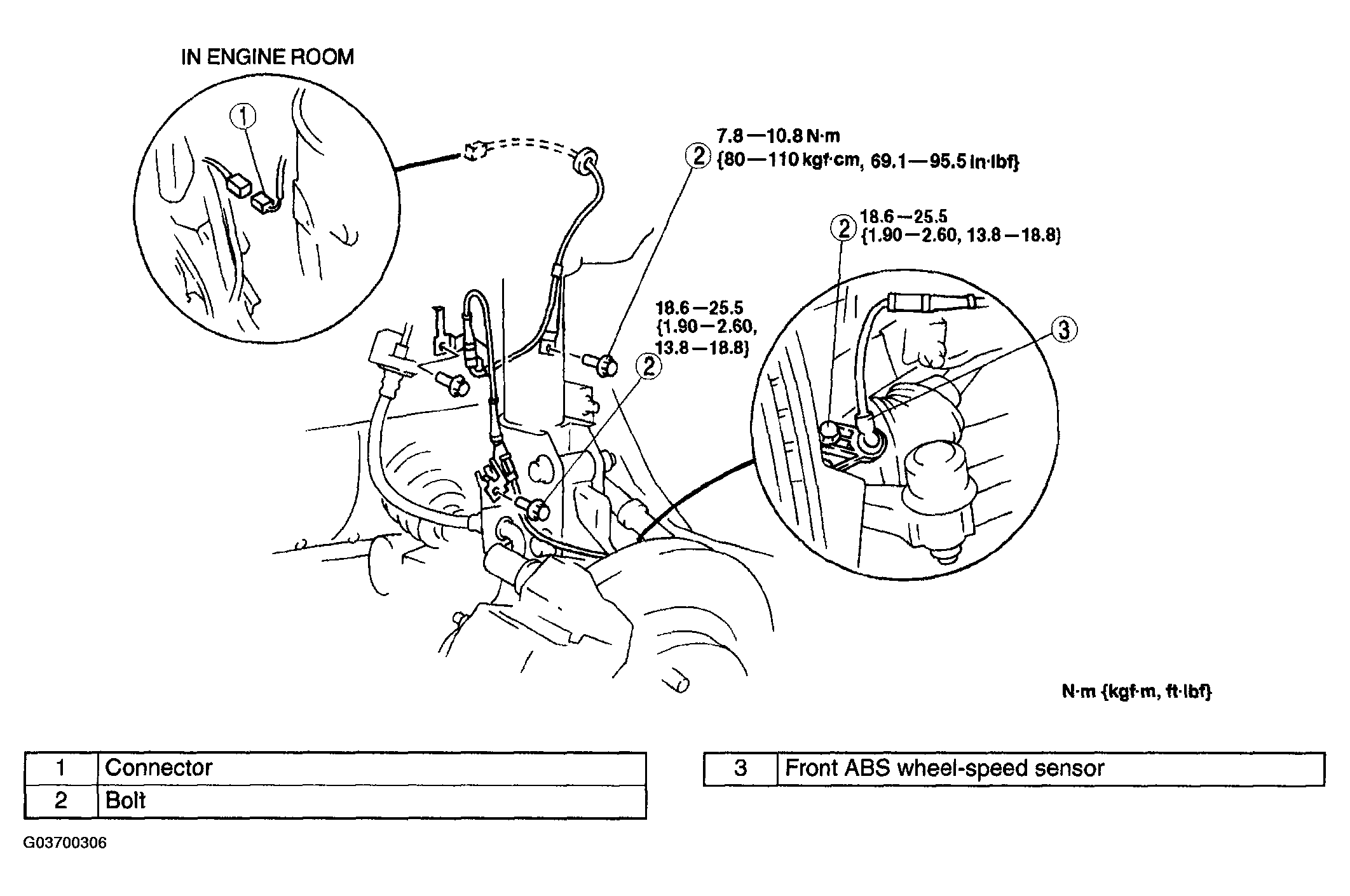

Fig 1: Removing Front ABS Wheel-Speed Sensor - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
