2005 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Power Window Motor Inspection
- Remove the power window motor. (See FRONT POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY .) (See REAR POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY :)
- Apply battery positive voltage to the power window motor terminals and inspect the operation of the power window motor.
- If not as specified, replace the power window motor.

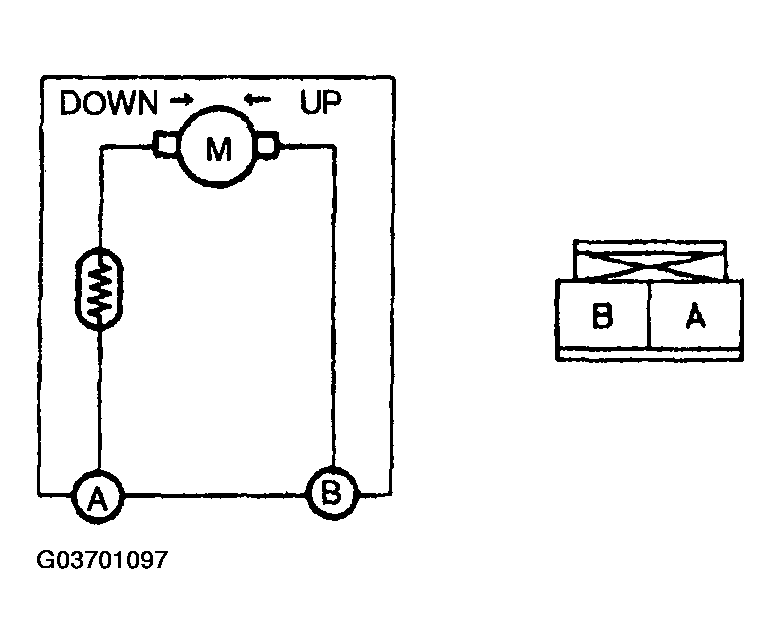

POWER WINDOW MOTOR TERMINAL AND MOTOR OPERATIONTerminal Motor operation A B GND B+ Up B+ GND Down
