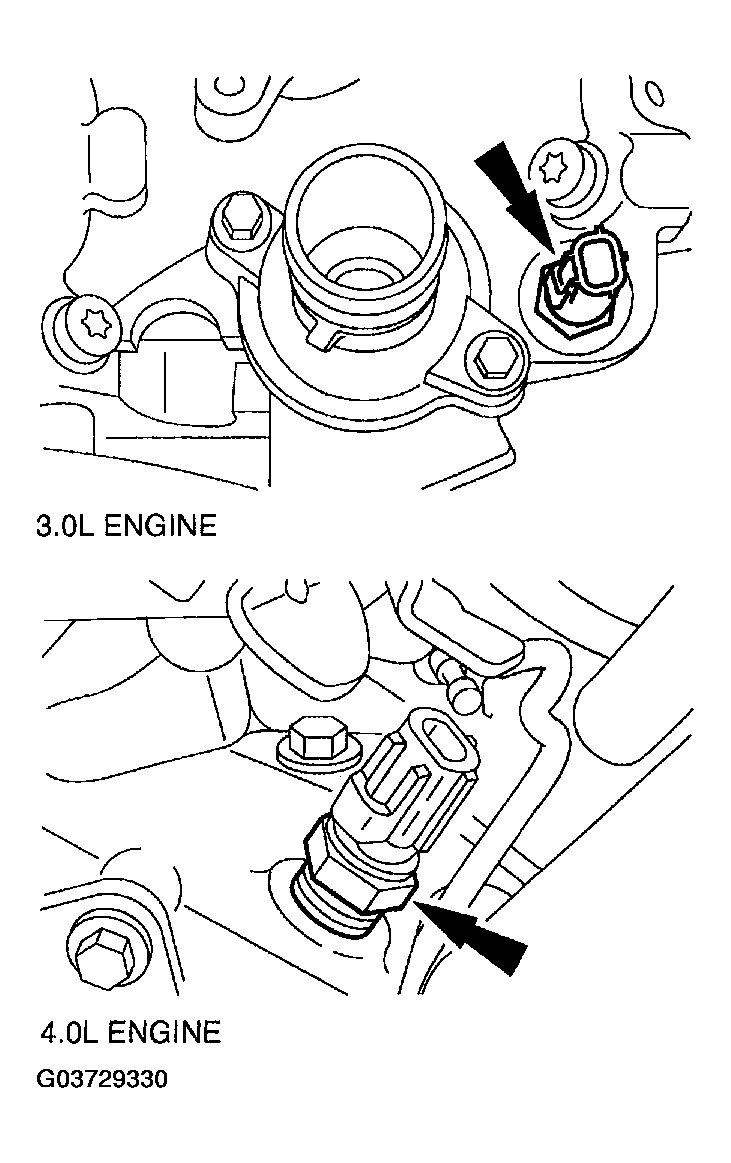

Engine Coolant Temperature Sensor Removal/Installation
- Disconnect negative battery cable.
- Partially drain the cooling system. See ENGINE COOLANT REPLACEMENT - 3.0L or ENGINE COOLANT REPLACEMENT - 4.0L .
- Disconnect engine coolant temperature (ECT) sensor connector.NOTE:
- The 2.3L engine has a CHT sensor. See CYLINDER HEAD TEMPERATURE (CHT) SENSOR REMOVAL/INSTALLATION - 2.3L .
- Remove the ECT sensor.
- Install in reverse order of removal.
Tightening torque
16-24 N.m { 1.6-2.4 kgf.m, 12-17 ft.lbf }
