2005 Mazda B3000 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Windshield Removal/Installation: Notes
- Remove the windshield wiper pivot arms. See PIVOT ARM REMOVAL/INSTALLATION .
- Remove both A-pillar trim assist handles, if equipped.

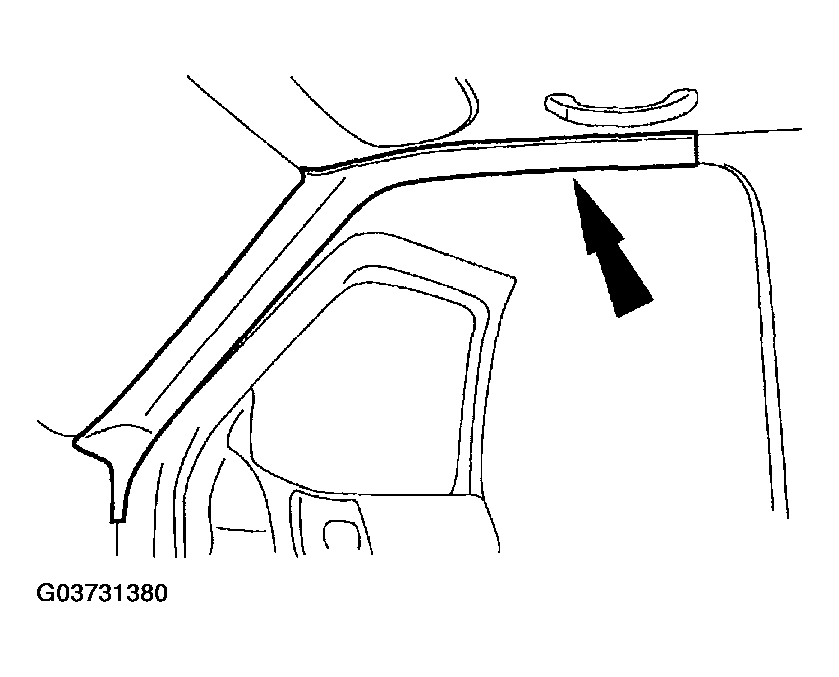

- Remove both A-pillar trim panels.

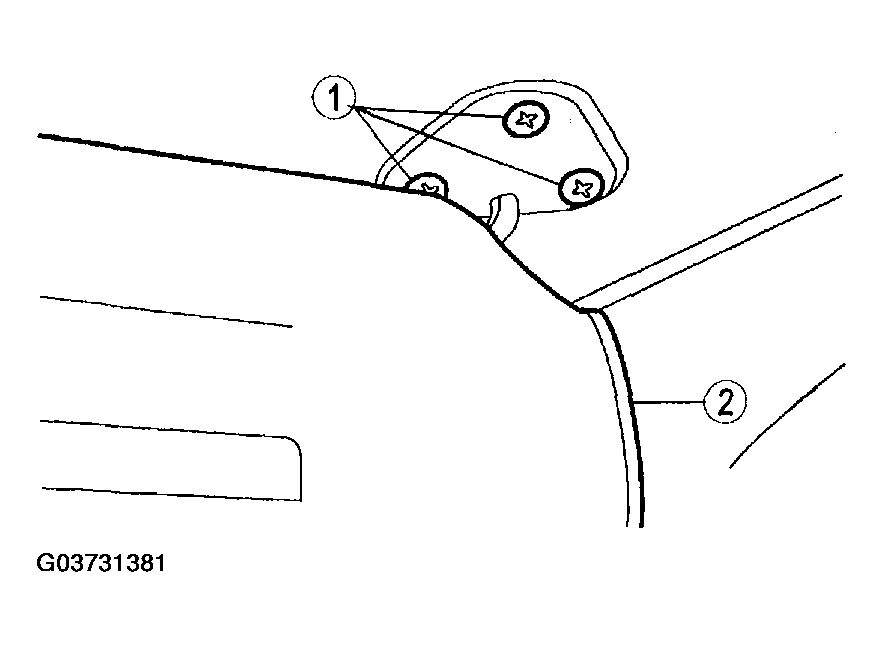

- Remove the screws (1), sun visors (2) and disconnect connectors, if necessary.
- Remove the inside rear view mirror.

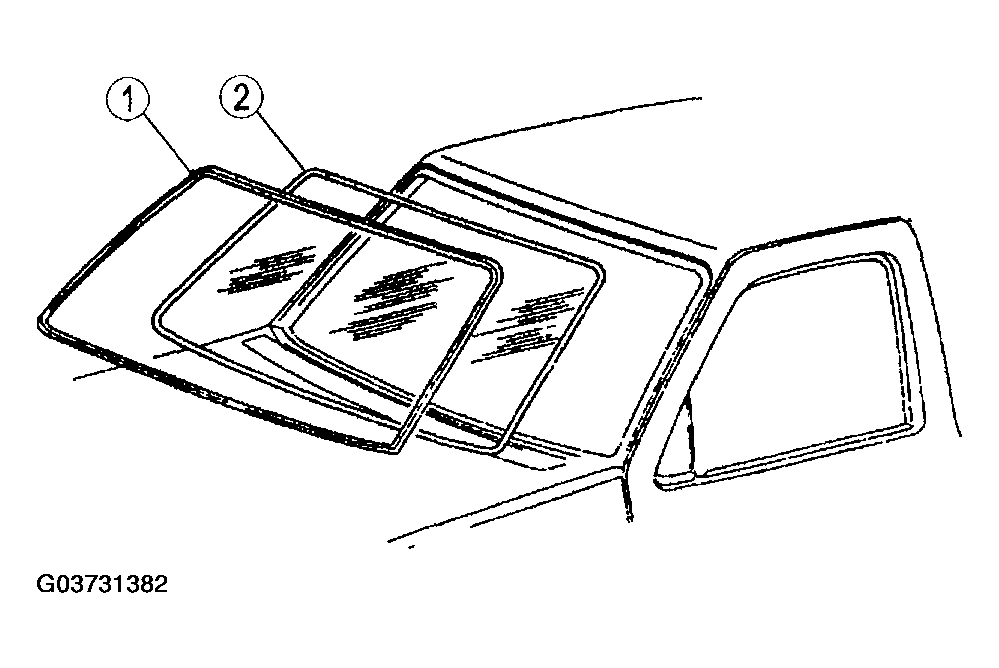

- Remove molding (1) and windshield (2). See Windshield Removal Note.
- Install in reverse order of removal. See Windshield Installation Note.
