2005 Mazda B3000 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Power Window Motor Removal/Installation: Installation

  1. Install in reverse order of removal.
    • Use a heavy duty riveter to install the new rivets.

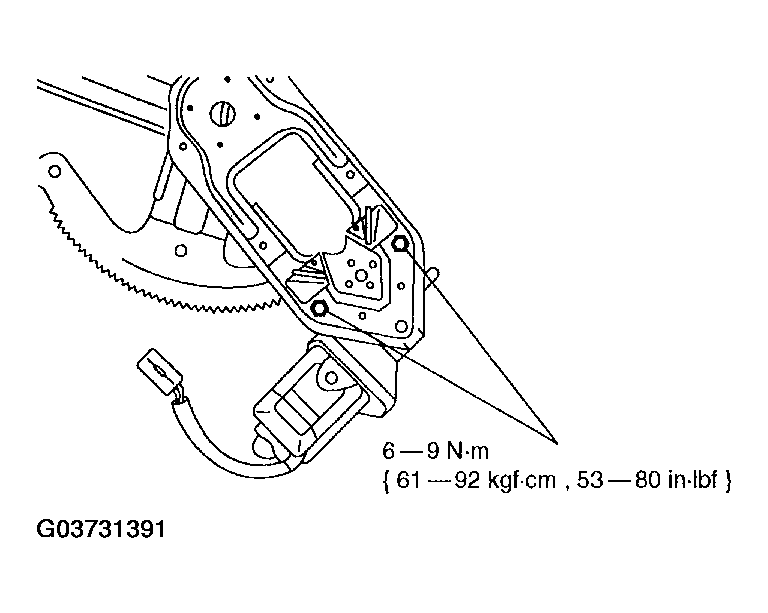

      Fig 1: Installing Motor - With Torque Specifications
      G03731391Courtesy of MAZDA MOTORS CORP.
