2005 Mazda B3000 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Ignition Switch Inspection

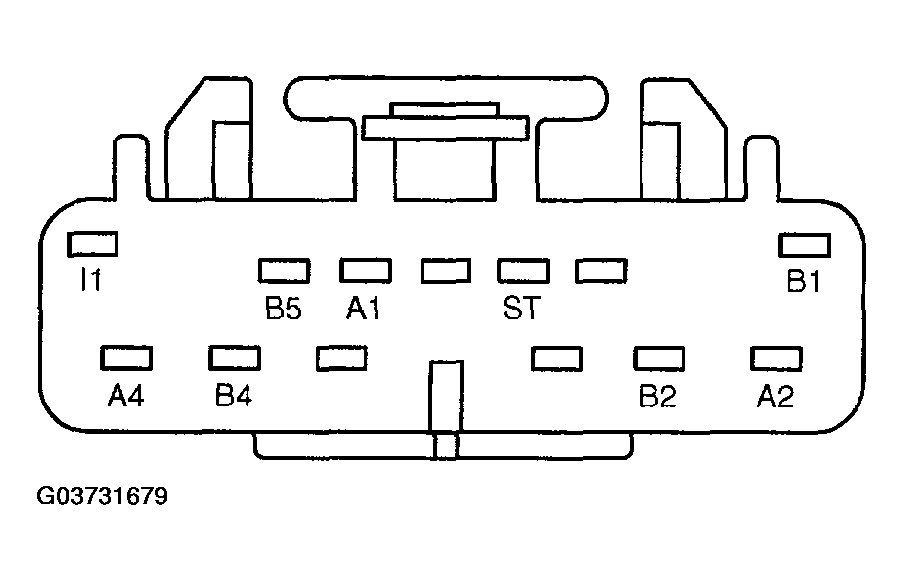

CIRCUIT AND TERMINAL REFERENCE
| Circuit to Test | Connect Self-Powered Test Light or Ohmmeter to Terminals | Move Key to These Positions | A Good Switch Will Indicate |
|---|---|---|---|
| Run Power Circuit | B1 and A1 B2 and A2 B4 and A4 | Off/Lock | Open Circuit |
| Accessory | Open Circuit | ||
| Run | Closed Circuit | ||
| Start | Open Circuit | ||
| Run/Start Power Circuit | B5 and 11 | Off/Lock | Open Circuit |
| Accessory | Open Circuit | ||
| Run | Closed Circuit | ||
| Start | Closed Circuit | ||
| "Ace" Power Circuit | B5 and 11 | Off/Lock | Open Circuit |
| Accessory | Closed Circuit | ||
| Run | Open Circuit | ||
| Start | Open Circuit | ||
| Start Power Circuit | B4 and STA | Off/Lock | Open Circuit |
| Accessory | Open Circuit | ||
| Run | Open Circuit | ||
| Start | Closed Circuit |
