2005 Mazda 3 i, AutomaticFACTORY OEM SERVICE PROCEDURE
Resistance Inspection
- Disconnect the mass air flow sensor connector.

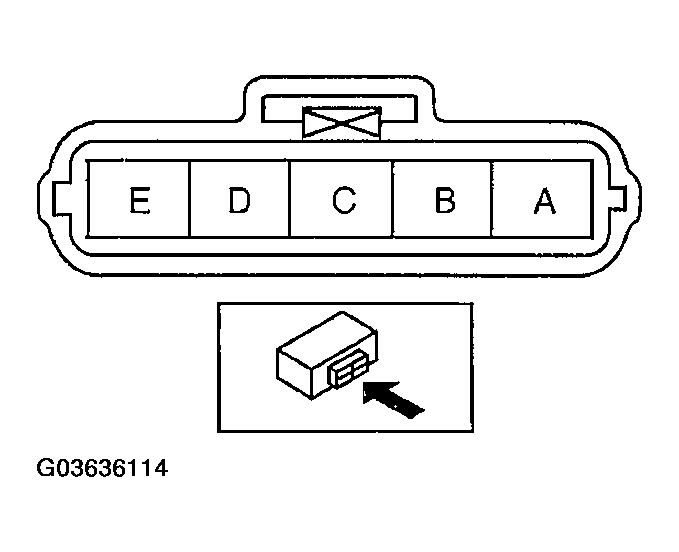

- Verify that the resistance between MAF sensor terminals D and E is within the specification.
- If the monitor item status/specification (reference) is not within the specification, even though the IAT sensor resistance is within the specification, perform the "CIRCUIT OPEN/SHORT INSPECTION ".
- If not within the specification, replace the MAF sensor.
IAT SENSOR TEMPERATURE/RESISTANCE SPECIFICATION
| Ambient temperature (°C {°F}) | Resistance (kilohm) |
|---|---|
| -20 {-4.0} | 13.6-18.4 |
| 20 {68} | 2.21-2.69 |
| 60 {140} | 0.493-0.667 |
