2005 Mazda 3 i, AutomaticFACTORY OEM SERVICE PROCEDURE

Crankshaft Position (CKP) Sensor Removal/Installation: Installation

CAUTION:
  • When replacing the CKP sensor, make sure there is no foreign material on it such as metal shavings. If it is installed with foreign material, the sensor output signal will malfunction resulting from fluctuation in magnetic flux and cause a deterioration in engine control.
  • Do not install the CKP sensor using any method except for the following, or do not change the installation position. It might cause a deterioration in engine control for ignition timing and fuel injection.
  1. Perform the following procedure so that cylinder No.1 is at TDC.
    1. Remove the cylinder block lower blind plug and install the SST.
    2. Rotate the crankshaft pulley clockwise until the crank weight contacts tine SST  so that cylinder No.1 is at TDC.

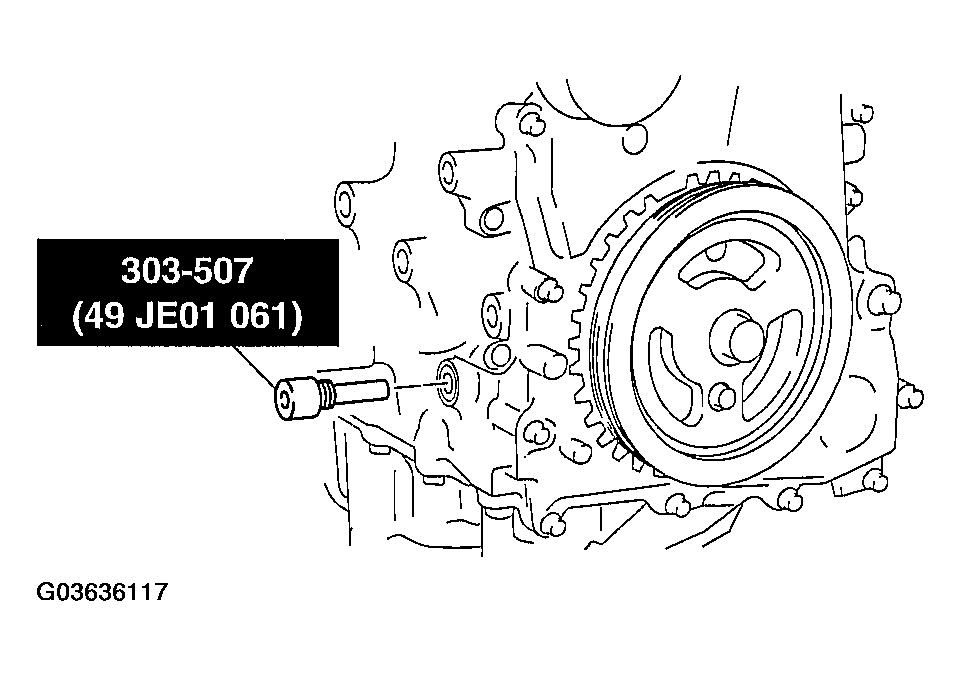

    Fig 1: Removing Cylinder Block Lower Blind Plug And Installing SST
    G03636117Courtesy of MAZDA MOTORS CORP.
  2. Mark the center line on the pulse wheel teeth of the crankshaft pulley (9th tooth counting counterclockwise from the empty space) using a ruler.
    CAUTION:
    • An inaccurately placed center line will cause improper installation resulting in a deterioration in engine control for ignition timing and fuel injection. Mark the center line carefully.
