2005 Mazda 3 L4-2.0LFACTORY OEM SERVICE PROCEDURE
Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection
ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION
Resistance Inspection
NOTE: Before performing the following inspection, make sure to follow the procedure as indicated in the troubleshooting flowchart.
1. Disconnect the ECT sensor connector.
2. Remove the ECT sensor.

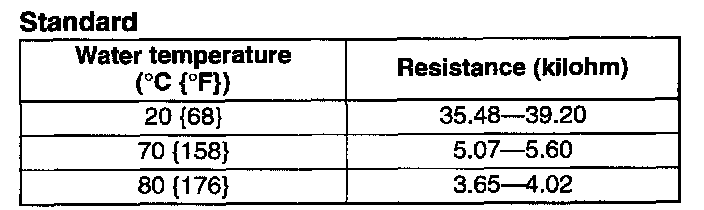

3. Place the ECT sensor in the water and while increasing the water temperature, measure the resistance between ECT sensor terminals A and B.
- If the monitor item status/specification (reference) is not within the specification, even though the ECT sensor resistance is within the specification, perform the "Circuit Open/Short Inspection".
- If not within the specification, replace the ECT sensor.
Circuit Open/Short Inspection
1. Disconnect the PCM connector.
2. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
Open circuit
- If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
- ECT sensor terminal A and PCM terminal 2AK
- ECT sensor terminal B and PCM terminal 2AA
Short circuit
- If there is continuity, there is a short circuit. Repair or replace the wiring harness.
- ECT sensor terminal A and power supply
- ECT sensor terminal A and body GND
- ECT sensor terminal B and power supply
Resistance Inspection
NOTE: Before performing the following inspection, make sure to follow the procedure as indicated in the troubleshooting flowchart.
1. Disconnect the ECT sensor connector.
2. Remove the ECT sensor.
3. Place the ECT sensor in the water and while increasing the water temperature, measure the resistance between ECT sensor terminals A and B.
- If the monitor item status/specification (reference) is not within the specification, even though the ECT sensor resistance is within the specification, perform the "Circuit Open/Short Inspection".
- If not within the specification, replace the ECT sensor.
Circuit Open/Short Inspection
1. Disconnect the PCM connector.
2. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
Open circuit
- If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
- ECT sensor terminal A and PCM terminal 2AK
- ECT sensor terminal B and PCM terminal 2AA
Short circuit
- If there is continuity, there is a short circuit. Repair or replace the wiring harness.
- ECT sensor terminal A and power supply
- ECT sensor terminal A and body GND
- ECT sensor terminal B and power supply
