Oscilloscope Patterns and Waveforms

Inspection Using An Oscilloscope (Reference)

NOTE: The duty ratio for the wave pattern can vary with the control conditions. Therefore determine comprehensively where the malfunction occurs among the input systems, output systems, and the PCM.

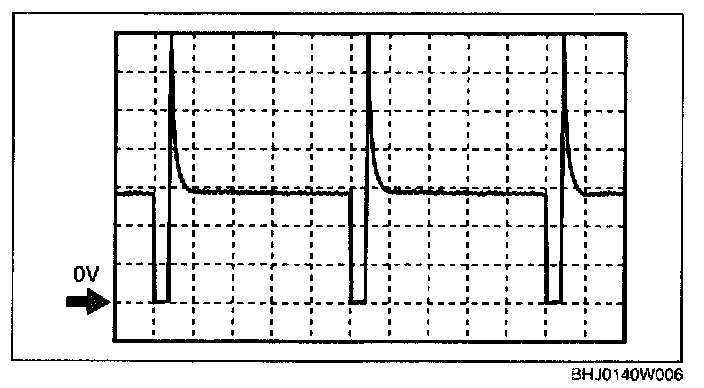

Throttle control (+)
- Terminal connected: 1B (+) - Negative battery terminal
- Oscilloscope setting: 5 V/DIV (Y): 0.4 ms/DIV (X), DC range
- Measurement condition: Ignition switch at ON




Throttle control (-)
- Terminal connected1 C (+) - Negative battery terminal
- Oscilloscope setting: 5 V/DIV (Y): 1 ms/DIV (X), DC range
- Measurement condition: As soon as the accelerator pedal is fully released from the fully depressed position while the ignition switch is at ON (engine off).




Front HO2S heater control
- Terminal connected:1 V (+) - Negative battery terminal
- Oscilloscope setting: 5 V/DIV (Y): 50 ms/DIV (X), DC range
- Measurement condition: Idling after warm-up (no load)




Fuel injector (FS, RS) control
- Terminal connected:
FS: 2G (+) - Negative battery terminal
RS: 2D (+) - Negative battery terminal

- Oscilloscope setting: 5 V/DIV (Y): 5 ms/DIV (X), DC range
- Measurement condition: Racing after warm-up (no load)




Field coil control (Generator)
- Terminal connected: 21 (+) - Negative battery terminal
- Oscilloscope setting: 0.5 V/DIV (Y): 1 ms/DIV (X), DC range
- Measurement condition: Idling after warm-up (no load)

Fuel injector (FP1, RP1) control




- Terminal connected:
FP1: 2M (+) - Negative battery terminal
RP1: 2J (+) - Negative battery terminal

- Oscilloscope setting: 5 V/DIV (Y): 10 ms/DIV (X), DC range
- Measurement condition: Idling after warm-up (no load)




- Terminal connected:
FP1: 2M (+) - Negative battery terminal
RP1: 2J (+) - Negative battery terminal

- Oscilloscope setting: 5 V/DIV (Y): 10 ms/DIV (X), DC range
- Measurement condition: Cranking while the engine is cold. (ECT: Approx. 20 °C {68 °F})




Purge control
- Terminal connected:2P (+) - Negative battery terminal
- Oscilloscope setting: 5 V/DIV (Y): 20 ms/DIV (X), DC range
- Measurement condition: Idling after warm-up (no load)

NOTE: Purge control might not be activated depending on the engine conditions.




Generator output voltage
- Terminal connected: 2T (+) - Negative battery terminal
- Oscilloscope setting: 2 V/DIV (Y): 2 ms/DIV (X), DC range
- Measurement condition: Idling after warm-up (no load)




Eccentric shaft position sensor
- Terminal connected: 2U (+) - Negative battery terminal
- Oscilloscope setting: 2 V/DIV (Y): 5 ms/DIV (X), DC range
- Measurement condition: Idling after warm-up (no load)




Metering oil pump control 1
- Terminal connected: 2W (+) - Negative battery terminal
- Oscilloscope setting: 5 V/DIV (Y): 2 ms/DIV (X), DC range
- Measurement condition: Just after the ignition switch is off after warm-up (no load)




Metering oil pump control 2
- Terminal connected: 2AB (+) - Negative battery terminal
- Oscilloscope setting: 5 V/DIV (Y): 2 ms/DIV (X), DC range
- Measurement condition: Just after the ignition switch is off after warm-up (no load)




Metering oil pump control 3
- Terminal connected: 2 V (+) - Negative battery terminal
- Oscilloscope setting: 5 V/DIV (Y): 2 ms/DIV (X), DC range
- Measurement condition: Just after the ignition switch is off after warm-up (no load)




Metering oil pump control 4
- Terminal connected: 2Y (+) - Negative battery terminal
- Oscilloscope setting: 5 V/DIV (Y): 2 ms/DIV (X), DC range
- Measurement condition: Just after the ignition switch is off after warm-up (no load)




Ignition coil (L/F, L/R, T/F, T/R)
- Terminal connected:
L/F: 2AA (+) - Negative battery terminal
L/R: 2Z (+) - Negative battery terminal
T/F: 2AD (+) - Negative battery terminal
T/R: 2AC (+) - Negative battery terminal

- Oscilloscope setting: 2 V/DIV (Y): 10 ms/DIV (X), DC range
- Measurement condition: Idling after warm-up (no load)




Fuel injector (FP2, RF2) control
- Terminal connected:
FP2: 3A (+) - Negative battery terminal
RP2: 3D (+) - Negative battery terminal

- Oscilloscope setting: 5 V/DIV (Y): 5 ms/DIV (X), DC range
- Measurement condition: Racing after warm-up (no load)




APV motor control (+)
- Terminal connected: 3G (+) - Negative battery terminal
- Oscilloscope setting: 5 V/DIV (Y): 20 ms/DIV (X), DC range
- Measurement condition: Engine speed 6,250 rpm or more after warm-up (approx. 2 s after the APV remains open)




APV motor control (-)
- Terminal connected: 3J (+) - Negative battery terminal
- Oscilloscope setting: 5 V/DIV (Y): 20 ms/DIV (X), DC range
- Measurement condition: Within 20 s from 2 s after the accelerator is released from the engine speed at 6,250 rpm or more after warm-up.
