2004 Mazda RX8 2RTR-1.3LFACTORY OEM SERVICE PROCEDURE
Keyless Entry Module: Service and Repair
KEYLESS CONTROL MODULE REMOVAL/INSTALLATION
1. When replacing the keyless control module, perform the following procedure:
- KEYLESS CONTROL MODULE CONFIGURATION
2. Disconnect the negative battery cable.
3. Remove the front side trim.

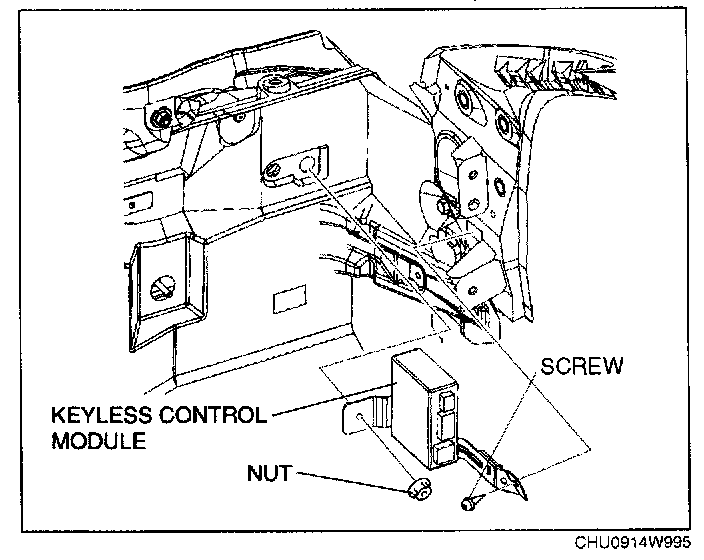

4. Remove the nut and screw.
5. Remove the connector clip installed to the bracket by shifting the keyless control module downward.
6. Disconnect the keyless control module connector.
7. Push the stopper with a small screwdriver and remove the bracket in the direction shown by the arrow.
8. Install in the reverse order of removal.
9. When replacing the keyless control module of vehicles with the immobilizer system, perform the following procedure:
- IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING.
- Transmitter ID code change.
1. When replacing the keyless control module, perform the following procedure:
- KEYLESS CONTROL MODULE CONFIGURATION
2. Disconnect the negative battery cable.
3. Remove the front side trim.
4. Remove the nut and screw.
5. Remove the connector clip installed to the bracket by shifting the keyless control module downward.
6. Disconnect the keyless control module connector.
7. Push the stopper with a small screwdriver and remove the bracket in the direction shown by the arrow.
8. Install in the reverse order of removal.
9. When replacing the keyless control module of vehicles with the immobilizer system, perform the following procedure:
- IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING.
- Transmitter ID code change.
