2004 Mazda RX-8 1.3 3FACTORY OEM SERVICE PROCEDURE
Cap Installation Note

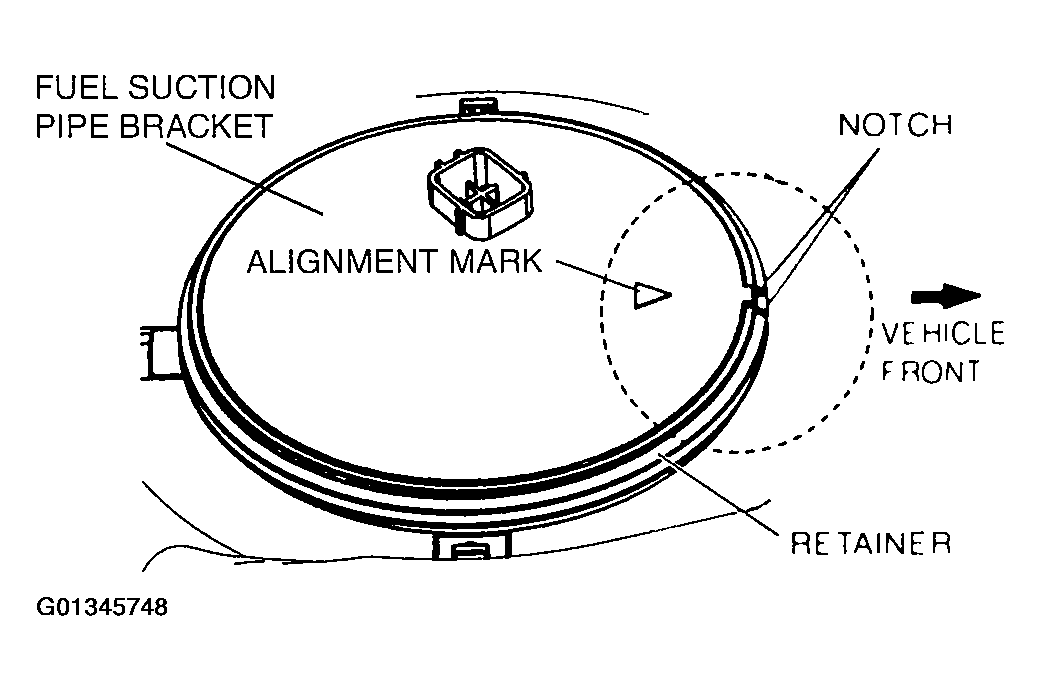

- Align the alignment mark of the fuel suction pipe bracket and the retainer notch as shown in the figure.
- Align the positions of the cap and retainer as shown in the figure, and tighten them one full rotation
by hand.
- If the retainer and cap cannot be tighten by hand, remove the cap, verify that there is no damage or misalignment on the retainer and cap, and then tighten again.
CAUTION:- The cap could be damaged if the SST is used with any play between the cap and the SST. Securely attach the SST so that there is no gap between the SST tabs and the side of the cap.
