2004 Mazda RX-8 1.3 3FACTORY OEM SERVICE PROCEDURE

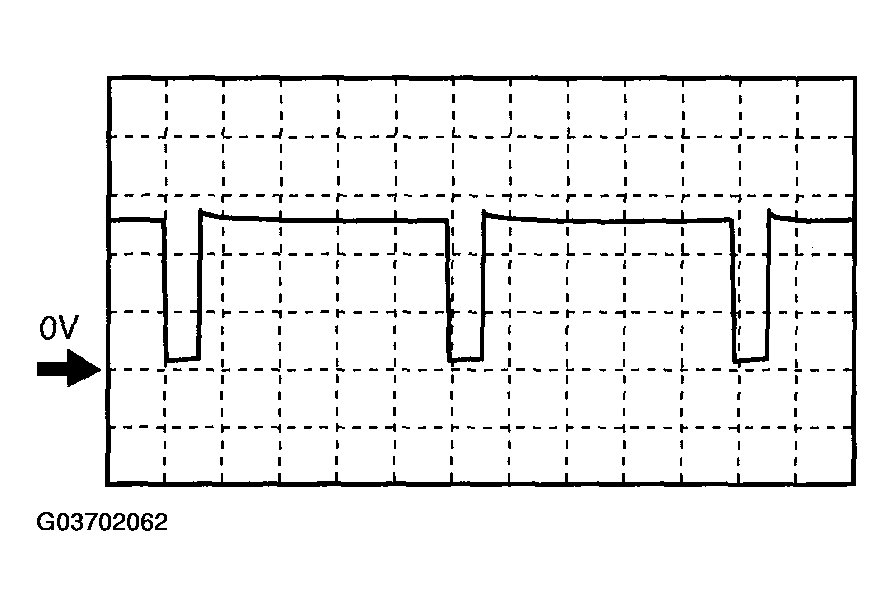

APV motor control (-)
- Terminal connected: 3J (+)-Negative battery terminal
- Oscilloscope setting: 5 V/DIV (Y): 20 ms/DIV (X), DC range
- Measurement condition: Within 20 s from 2 s after the accelerator is released from the engine speed at 6, 250 rpm or more after warm-up.
