2004 Mazda RX-8 1.3 3FACTORY OEM SERVICE PROCEDURE

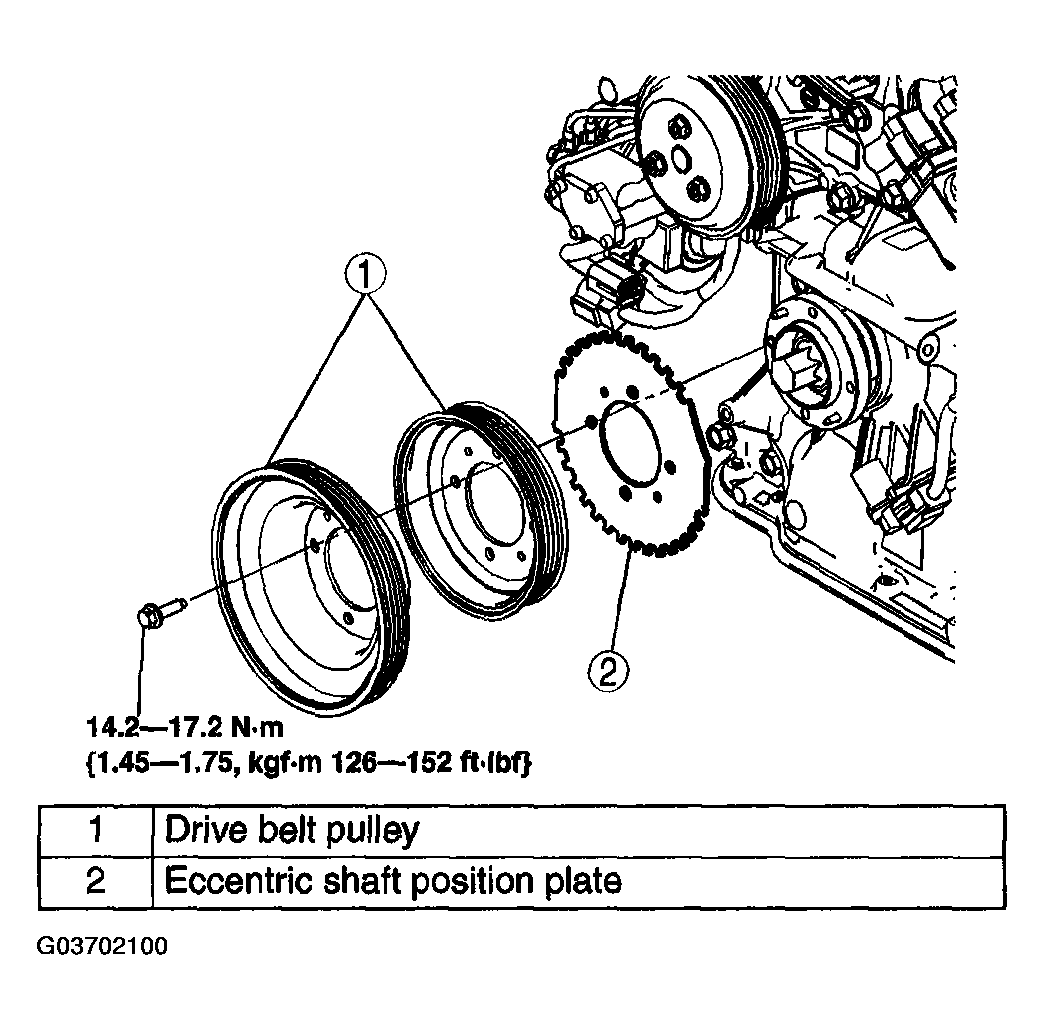

Eccentric Shaft Position Plate Removal/Installation
CAUTION:
- To allow the PCM to identify that the eccentric shaft position plate has been replaced, pump the brake pedal 20 times within 8 s after the ignition switch is turn to the ON position (engine off).
- Remove the drive belt referring to the drive belt replacement. (See DRIVE BELT REPLACEMENT .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
