2004 Mazda MX-5 Miata Base, StandardFACTORY OEM SERVICE PROCEDURE
Inspection Of Resistance
NOTE:
- Perform the following test only when directed.
- Verify that the ignition switch is at LOCK.
- Disconnect KS connector.

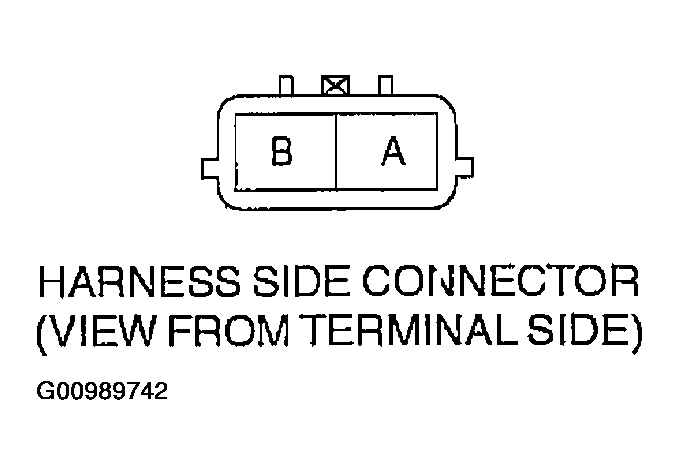

- Measure the resistance between KS terminal A and the KS body using an ohmmeter.
- If not as specified, replace the KS.
- If knock sensor is okay, but PID value is out of specification, perform the "Circuit Open/Short Inspection". See CIRCUIT OPEN/SHORT INSPECTION .
Specification
- Approx. 560 kilohms [20°C {68°F}]
- Reconnect the KS connector.
