2004 Mazda MX-5 Miata Base, AutomaticFACTORY OEM SERVICE PROCEDURE
BARO PID Inspection Procedure
- Confirm the ignition switch is turned to ON.
- Confirm that the following PIDs are within the specifications:
BARO
- 101.3 kPa {760 mmHg, 29.9 inHg} (Absolute pressure)
IAT
- 10-50°C {50-122°F}

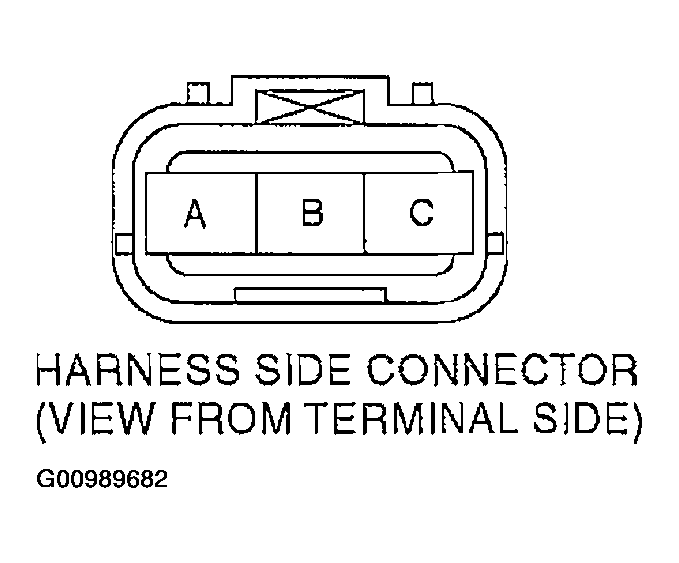

- Disconnect the EGR boost sensor connector and measure the voltage at EGR boost sensor connector terminal C.
- Voltage 4.5-5 V
- Reconnect the connector.
- Disconnect the vacuum hose from the EGR boost sensor.
- Connect the vacuum pump to the EGR boost sensor.
- Select BAR PID on the WDS or equivalent.
- Apply the vacuum and verify that the BARO PID is as specified.
