2004 Mazda MX-5 Miata Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Inspection Of Continuity

NOTE:
  • Perform the following test only when directed.
  1. Disconnect the negative battery cable.
  2. Remove the neutral switch.
  3. Inspect for continuity between the neutral switch terminals using an ohmmeter.

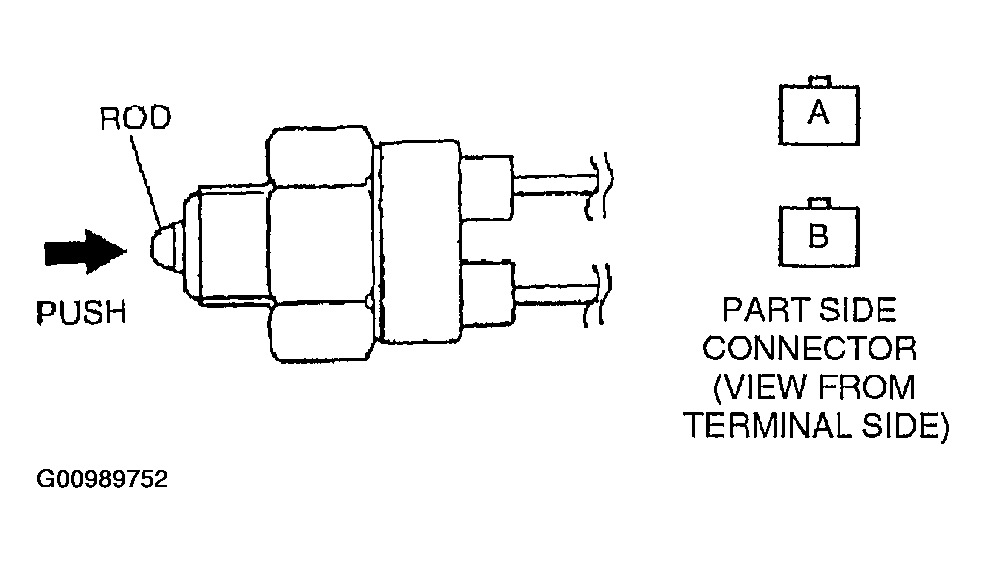

    Fig 1: Identifying Neutral Switch [BP, BP With TC] Part Side Connector & Rod
    G00989752Courtesy of MAZDA MOTORS CORP.
    • If not as specified, replace the neutral switch.
    • If neutral switch is okay but PID value is out of specification, perform the "Circuit Open/Short Inspection". See CIRCUIT OPEN/SHORT INSPECTION .

    Specification

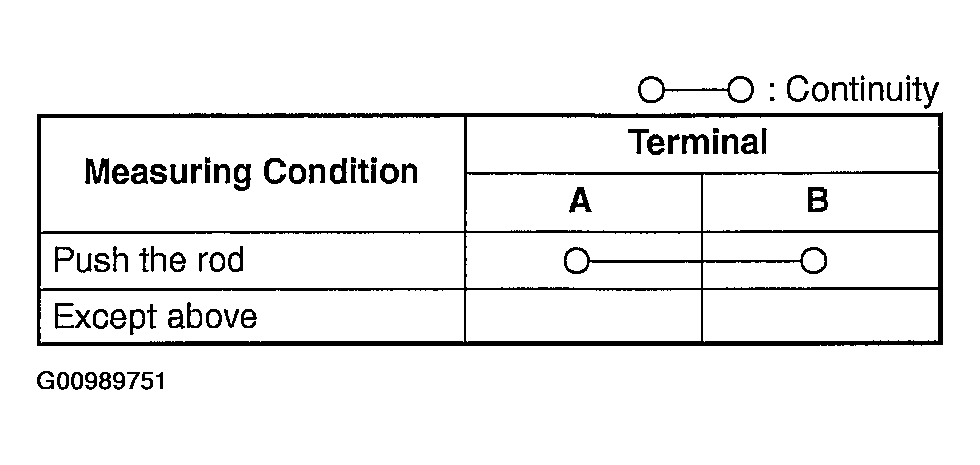

    Fig 2: Checking Continuity Of Neutral Switch [BP, BP With TC]
    G00989751Courtesy of MAZDA MOTORS CORP.
  4. Reconnect the neutral switch connector.
