2004 Mazda MX-5 Miata Base, AutomaticFACTORY OEM SERVICE PROCEDURE

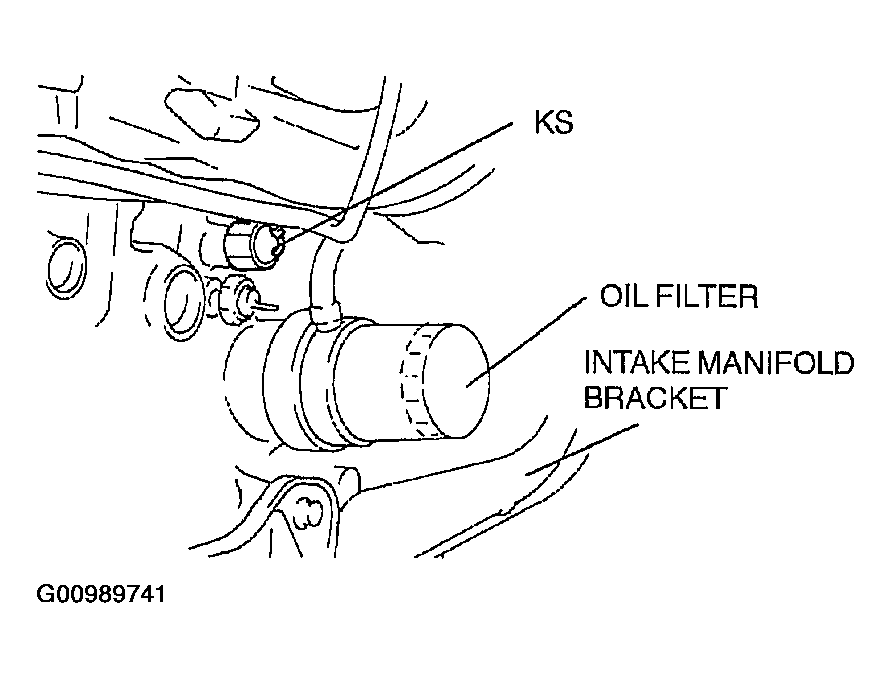

Knock Sensor (KS) Removal/Installation
- Disconnect the negative battery cable.
- Remove the intake manifold bracket.
- Remove the KS using the SST (49 H018 001).
- Install in the reverse order of removal.
Tightening torque
- 19.6-34.3 N.m {2.0-3.5 kgf.m, 14.5-25.3 ft.lbf}
