2004 Mazda MX-5 Miata Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Crankshaft Position (CKP) Sensor Adjustment
- Loosen the CKP sensor installation bolt.

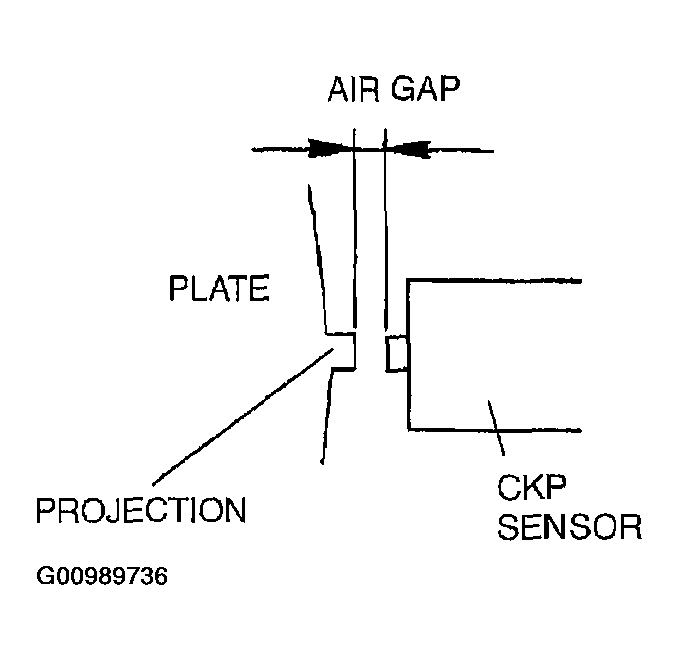

- While moving the CKP sensor, adjust the air gap between the CKP sensor and the four projections on the plate using a feeler gauge.
Specification
- 0.5-1.5 mm {0.020-0.059 in}
- Tighten the CKP sensor installation bolt.
- If not adjusted, replace the plate behind the crankshaft pulley or the CKP sensor. See PLATE REMOVAL/INSTALLATION or CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .
Tightening torque
- 7.9-10.7 N.m {80-110 kgf.cm, 69.5-95.4 in.lbf}
