2004 Mazda MX-5 Miata Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Wave Profile Inspection
- Remove the PCM. See PCM REMOVAL/INSTALLATION .
- Connect WDS or equivalent to DLC-2 connector.

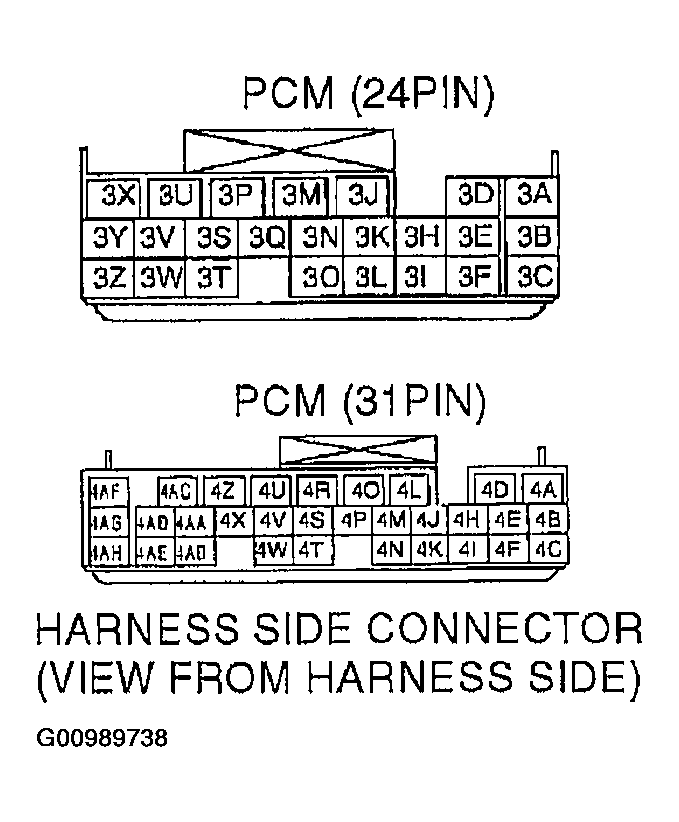

- Connect oscilloscope test leads to the following PCM connector terminals.
- (+) lead: PCM terminal 3V
- (-) lead: PCM terminal 4A
- Start the engine.
- Monitor RPM PID.

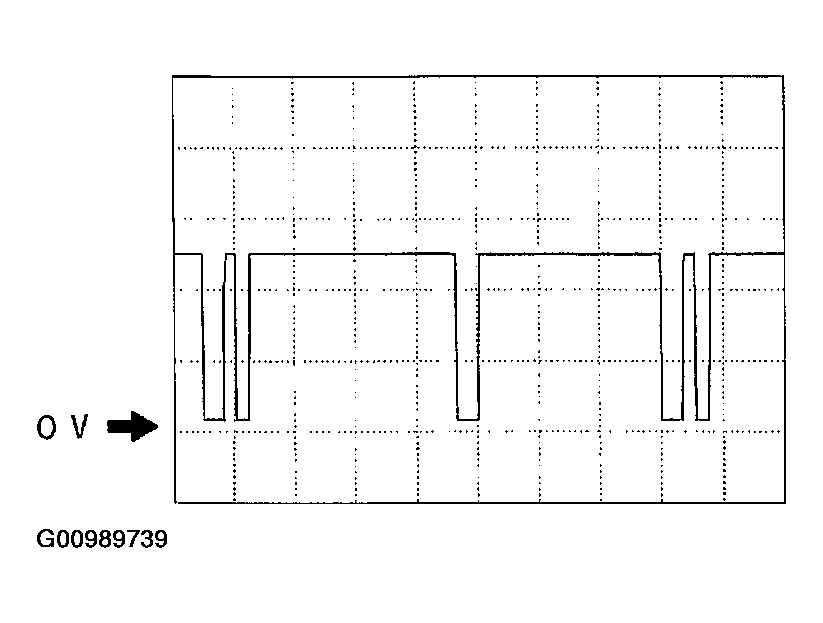

- Inspect wave profile when idling engine.
- If wave profile or voltage are out of specifications, carry out the "Circuit Open/Short Inspection". See CIRCUIT OPEN/SHORT INSPECTION .
- PCM terminal: 3V(+) <-> 4A(-)
- Oscilloscope setting: 2.0V/DIV(Y), 20ms/ DIV(X), DC range
- Vehicle condition: Idling
- If wave profile or voltage are out of specifications, carry out the "Circuit Open/Short Inspection". See CIRCUIT OPEN/SHORT INSPECTION .
