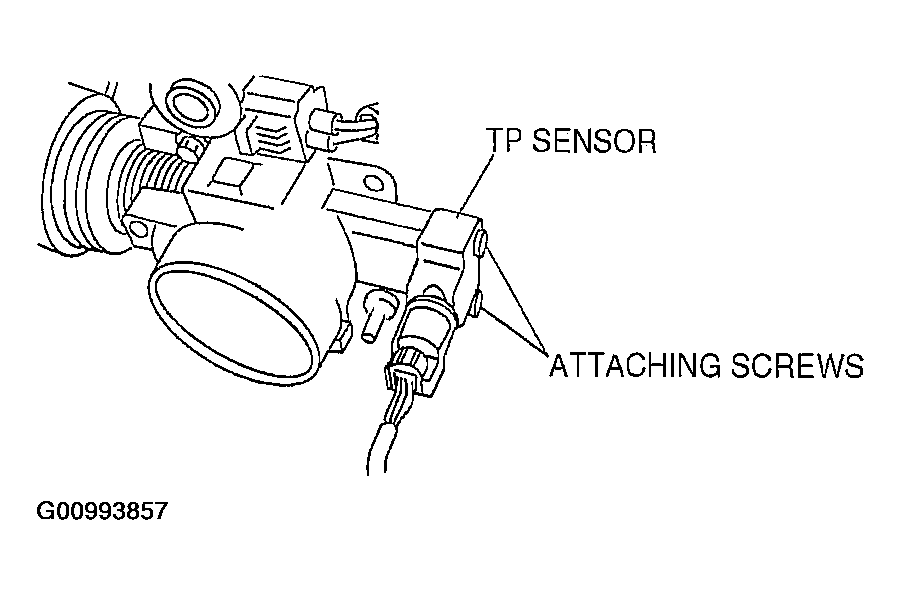

Throttle Position (TP) Sensor Removal/Installation
- Disconnect the TP sensor connector.
- Remove the TP sensor attaching screws.
- Remove the TP sensor from the throttle body.
- Verify that the throttle valve is fully closed.
- Install the TP sensor to the throttle body.
- Adjust the TP sensor.
- Tighten the TP sensor attaching screws.
Tightening torque
3.0 N.m {31 kgf.cm, 27 in.lbf}
- Verify that the throttle valve moves smoothly.
- Reconnect the TP sensor connector.
