2004 Mazda MPV LXFACTORY OEM SERVICE PROCEDURE
PCM Panel Removal Note
- Before removing the PCM panel, pull the PCM connector harness stay fastener out from the PCM panel.

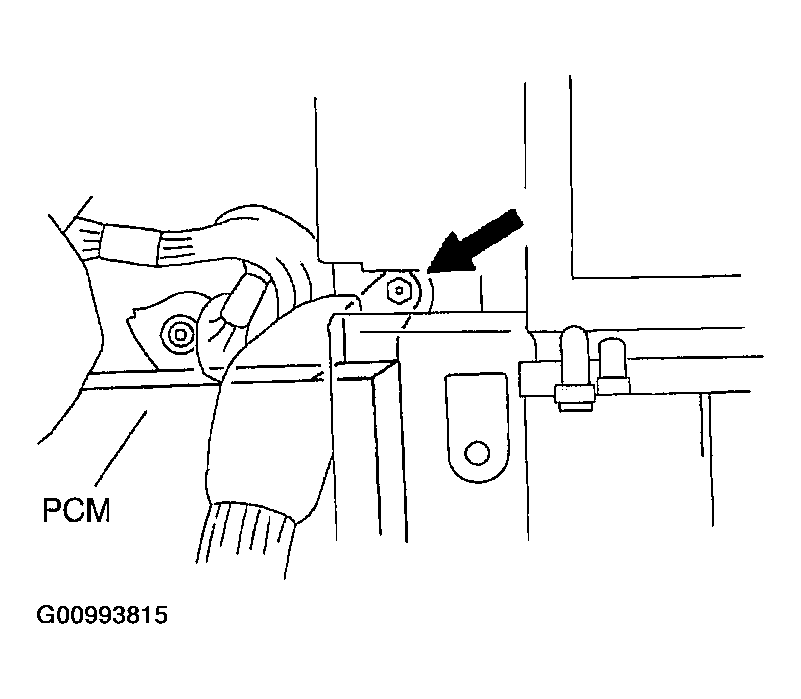

- Remove the upper right side of the PCM panel installation nut located at the back of the blower unit as shown.
- Remove the lower side of the PCM panel installation nuts located at the bottom of he cabin carpet.

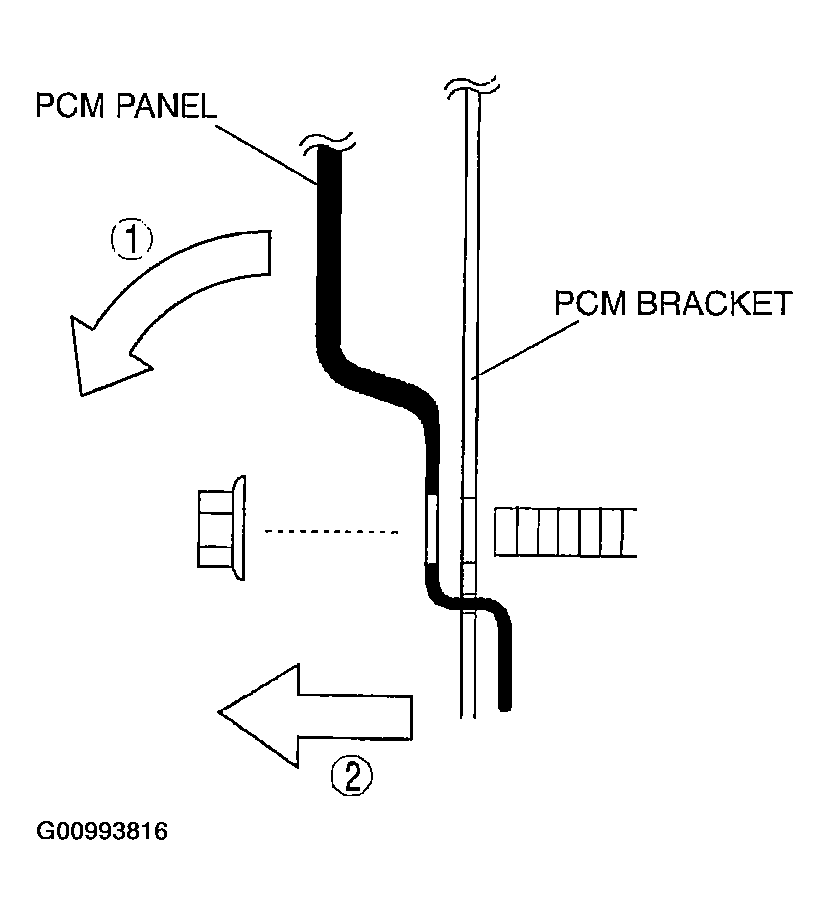

- Remove four installation nuts, then pull the PCM panel down to remove from installation place.
