2004 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Transaxle Range (Tr) Switch Removal/Installation
- Disconnect the negative battery cable.
- Remove the battery carrier, battery tray, and battery.
- Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
- Disconnect the TR switch connector.

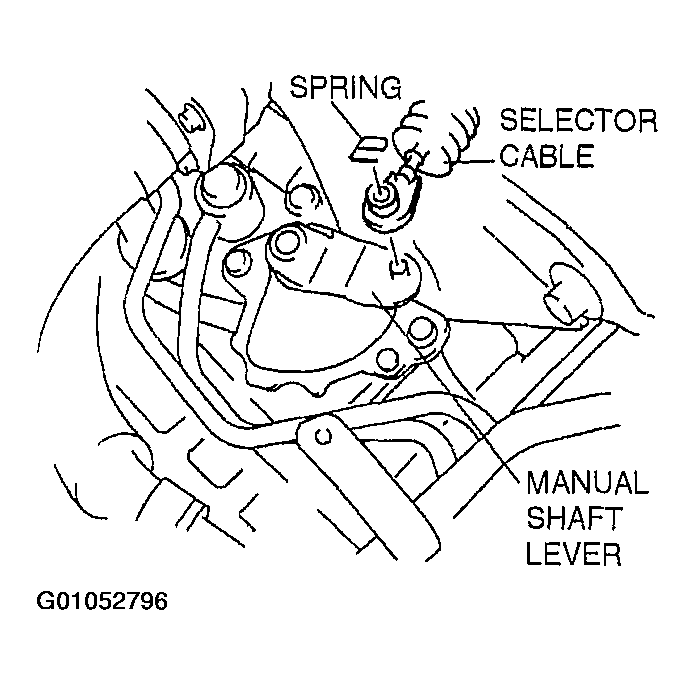

- Removal the spring and disconnect the selector cable.
- Rotate the manual shaft to the N position.
- Do not use an impact wrench. Hold the manual shaft lever when removing the manual shaft nut, or the transaxle may be damaged.
CAUTION:
CAUTION:
