2004 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Inspection Of Continuity
- Disconnect the O/D OFF switch connector.

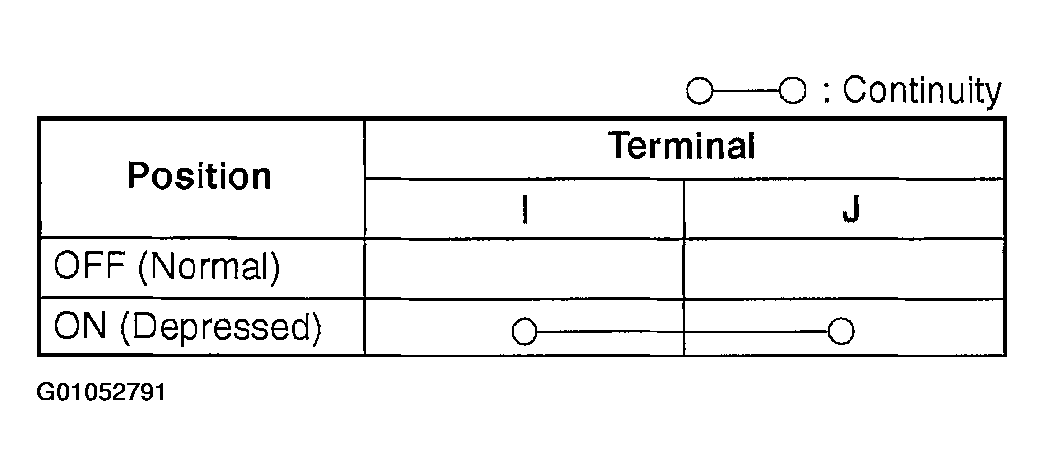

- Inspect continuity at the O/D OFF switch.
- If the switch is okay, inspect the wiring harness. (O/D OFF switch-TCM, O/D OFF switch-Body ground)
- If not as specified, replace the selector lever component. (See SELECTOR LEVER REMOVAL/INSTALLATION .)
